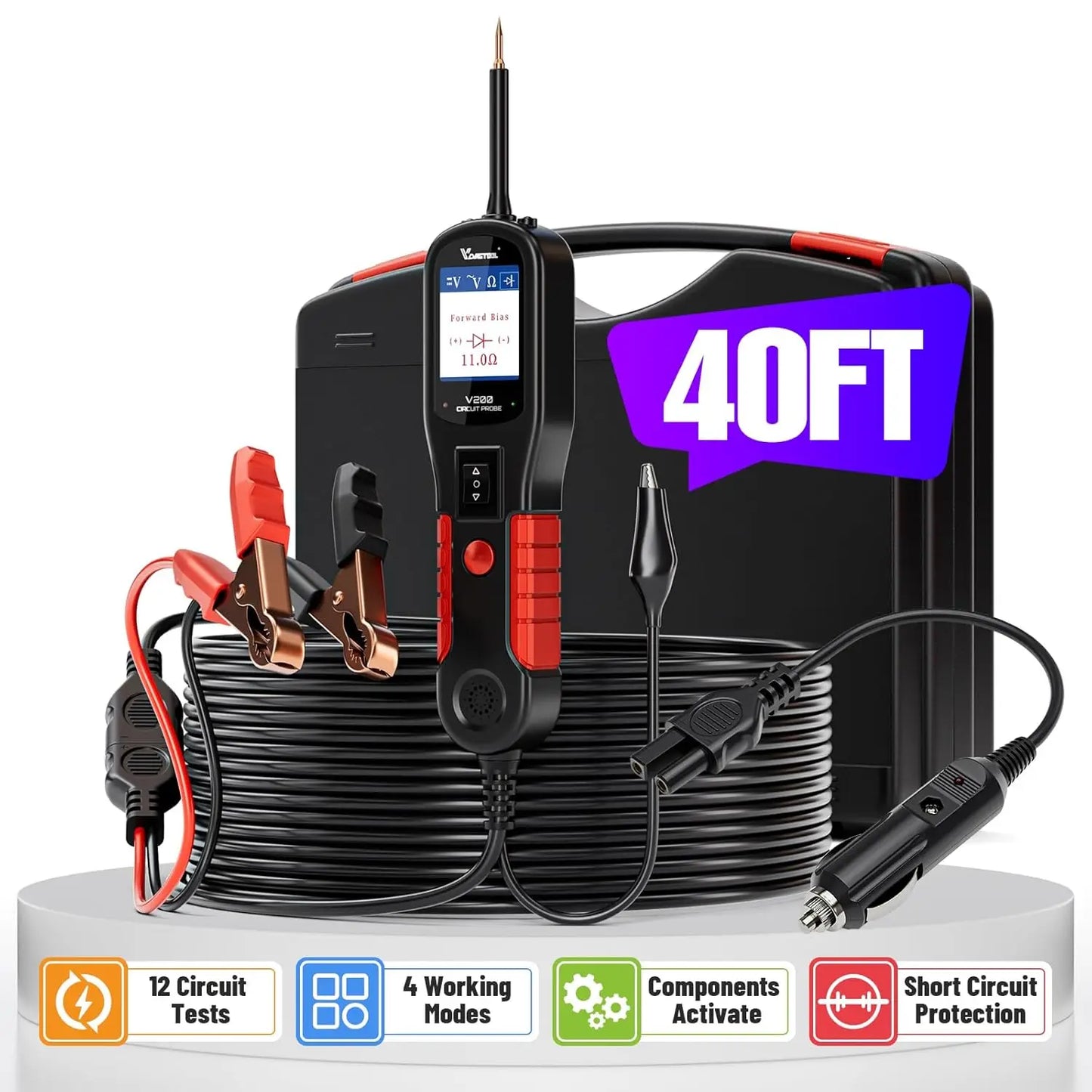

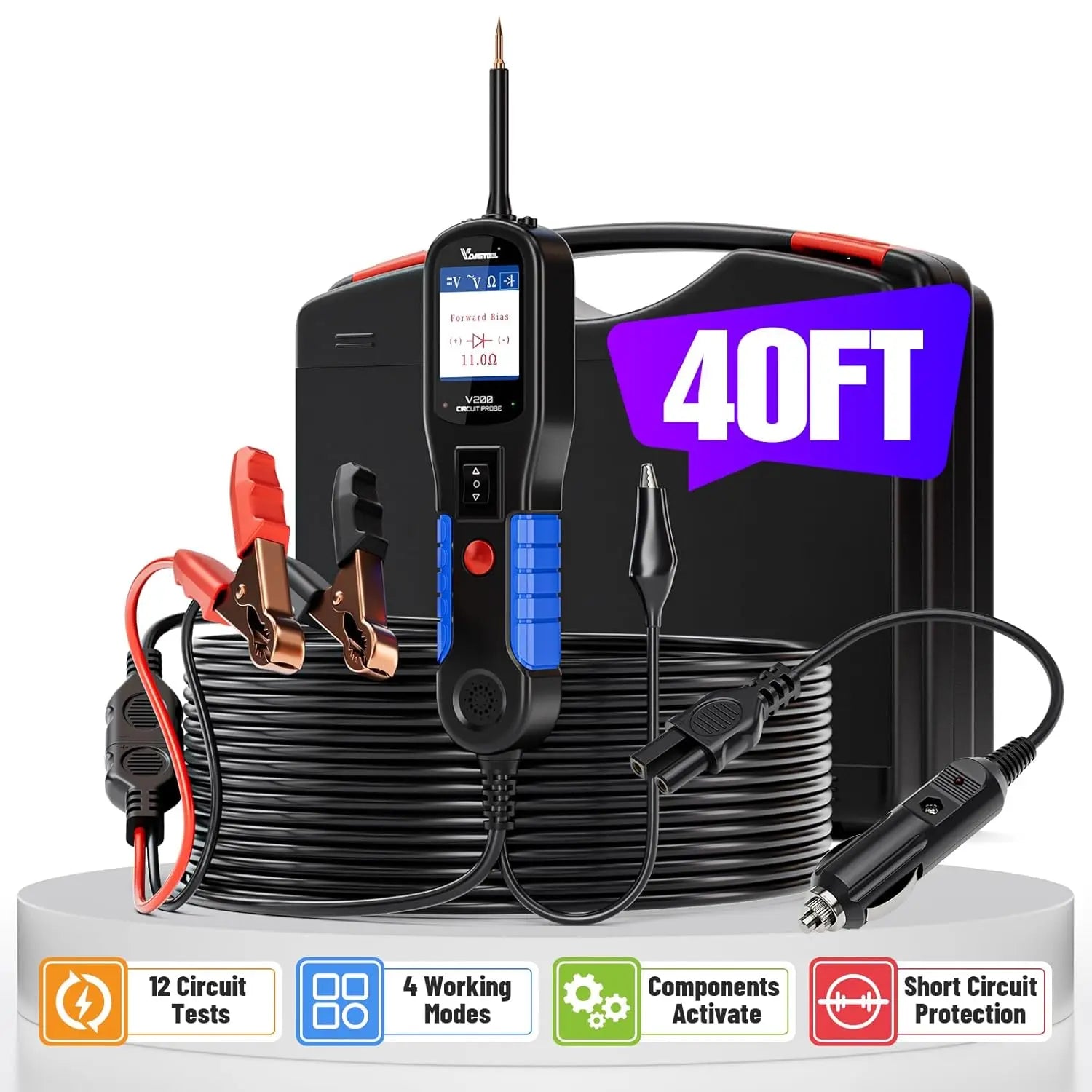

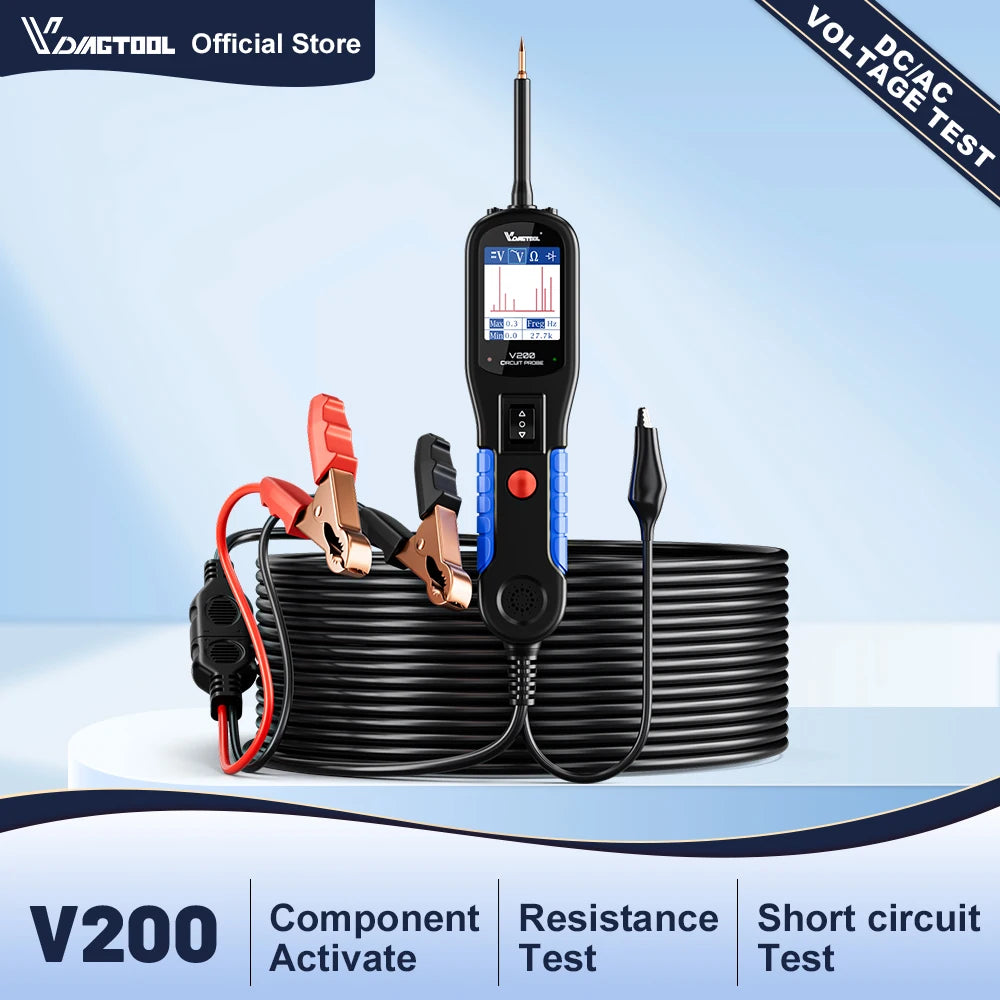

V200 power circuit probe tester is a simple but extremely useful circuit tester with 20ft+20ft extension cable to check whether car circuits or a certain component is energized or not. It supports ✔AC/DC Voltage Test ✔Diode, Resistance Test ✔Polarity Test✔Continuity,Ground,Signal Circuit Test ✔Activate Components✔Relay,Fuse,Trailer Light Test ✔Locate Short Circuits ✔Circuit Breaker Protection on all electrical systems of 12-24V vehicles.

V200 Electrical System Circuit Tester Features:

🚘4 Testing Mode:
DC voltage, AC voltage, Resistance Test, Diode Test

🚘 Parameter range：
✔️DC Voltage Range:0-65V;
✔️ Resistance range: 0-100 kΩ;
✔️Rated current: 1-10 amps;
✔️Frequency response of sound passage: 0Hz-10Khz;
✔️Operating Temperature: 0 to 60°C (32 to 140°F);
✔️Storage Temperature: -40 to 70°C (-40 to 185 F°).

🚘 Quick Self-Test:
Before you test a circuit or component, be sure your tool is in good order by doing a quick self-test.

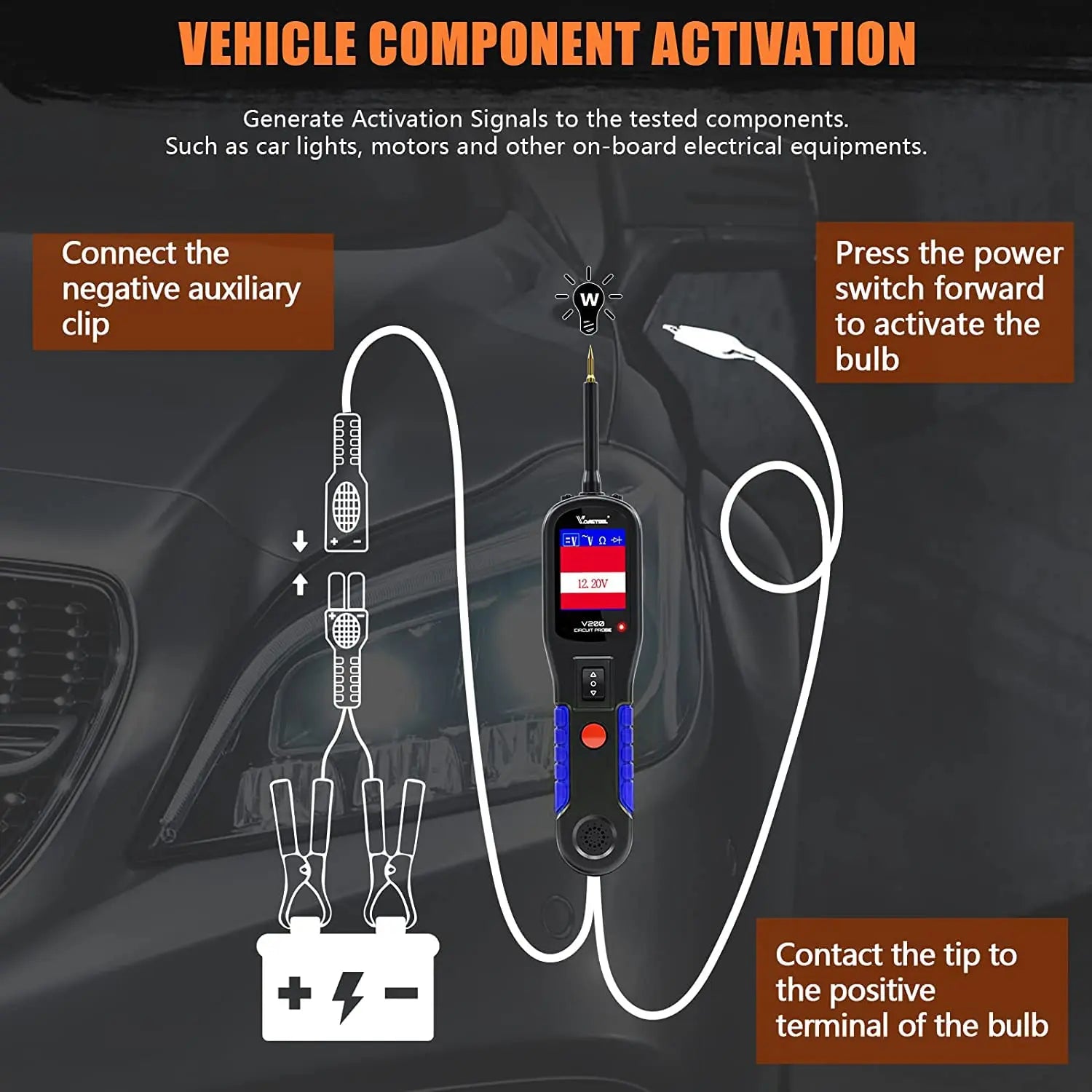

🚘 Component Activation:
The component activation feature is designed to generate activation signals to the tested components, such as car lights, motors, windshield wipers,to troubleshoot electrical problems.

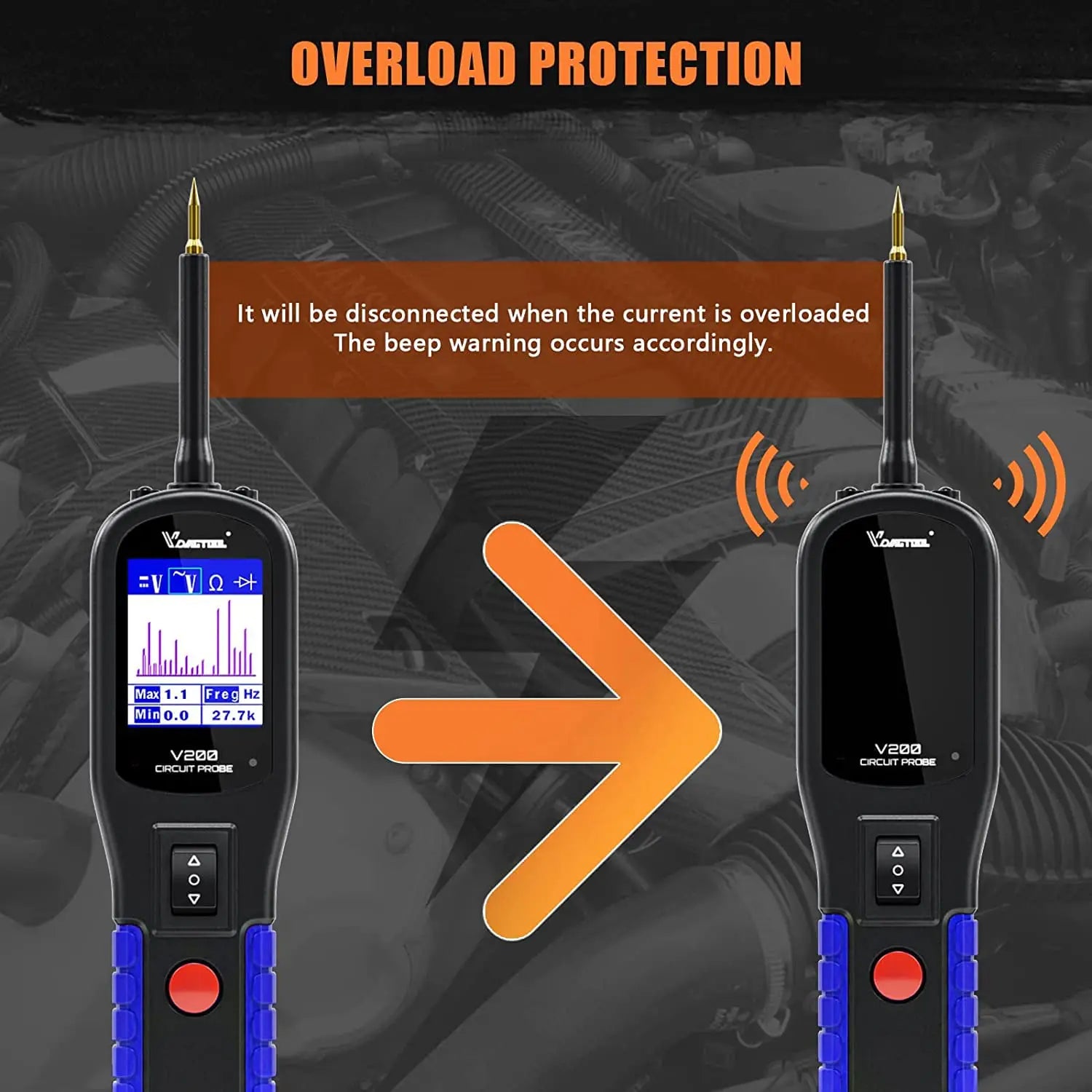

🚘 Current Overload Protection:
V200 circuit tester is short-circuit protected. The internal circuit breaker will trip if it becomes overload.

🚘Identify Polarity Quickly:
V200 automotive probe tester makes it easy to check component continuity and identify positive, negative & open circuits.

🚘 Build-in Light:
Enable you work safer in the dark.

🚘 40FT Extension Cable:
Covering from the front to the rear of the vehicle, you can easily inspect the entire electrical circuit system.

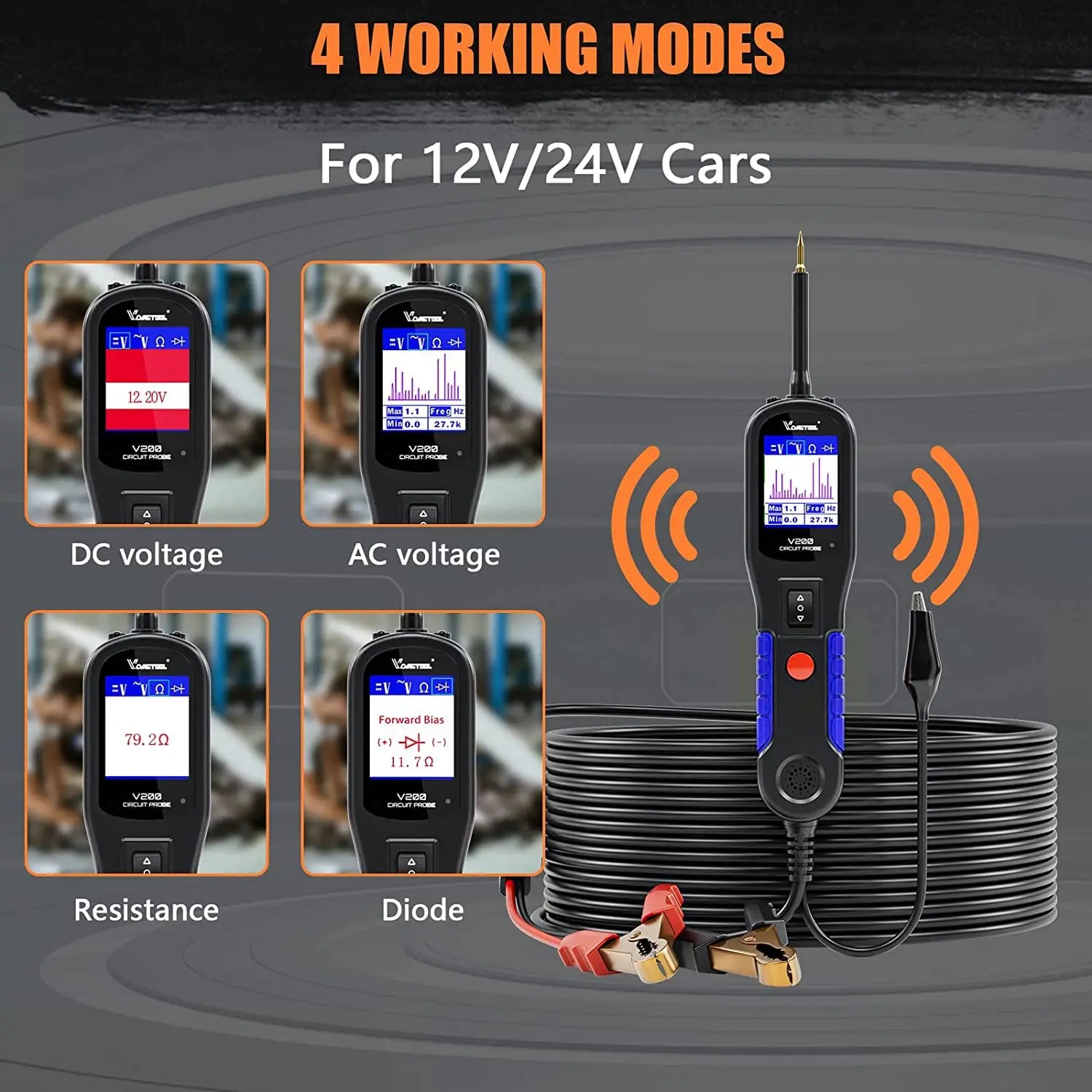

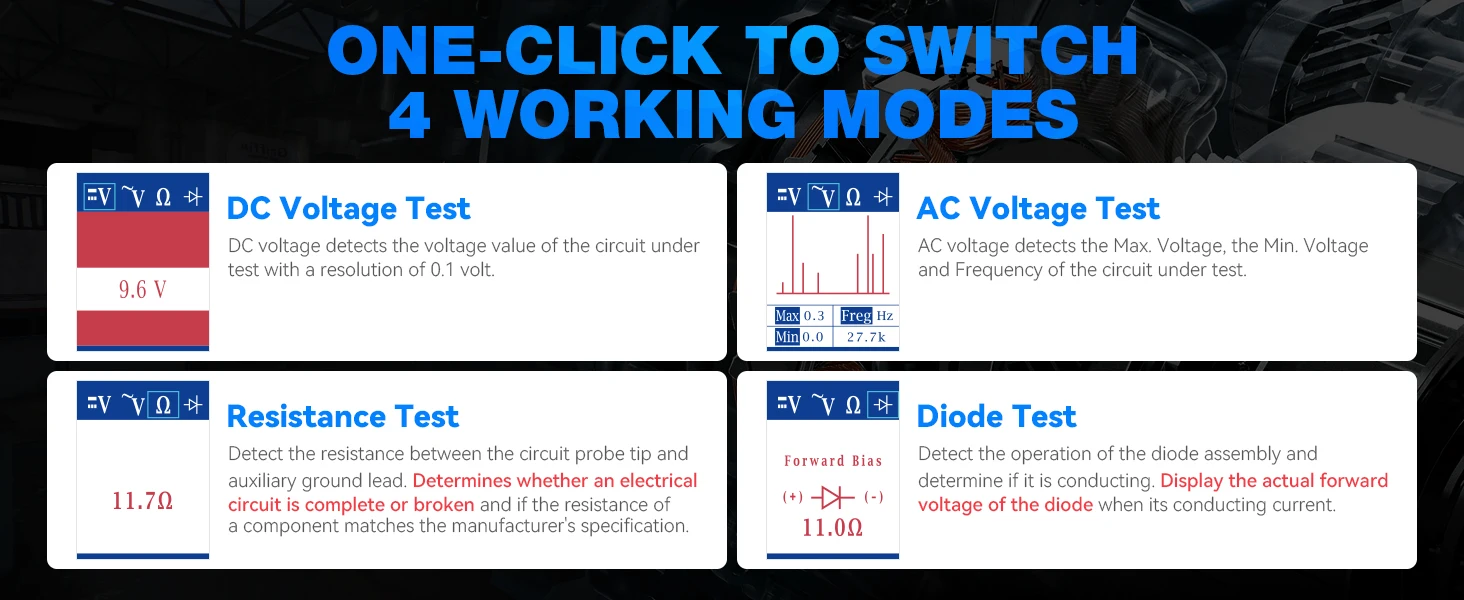

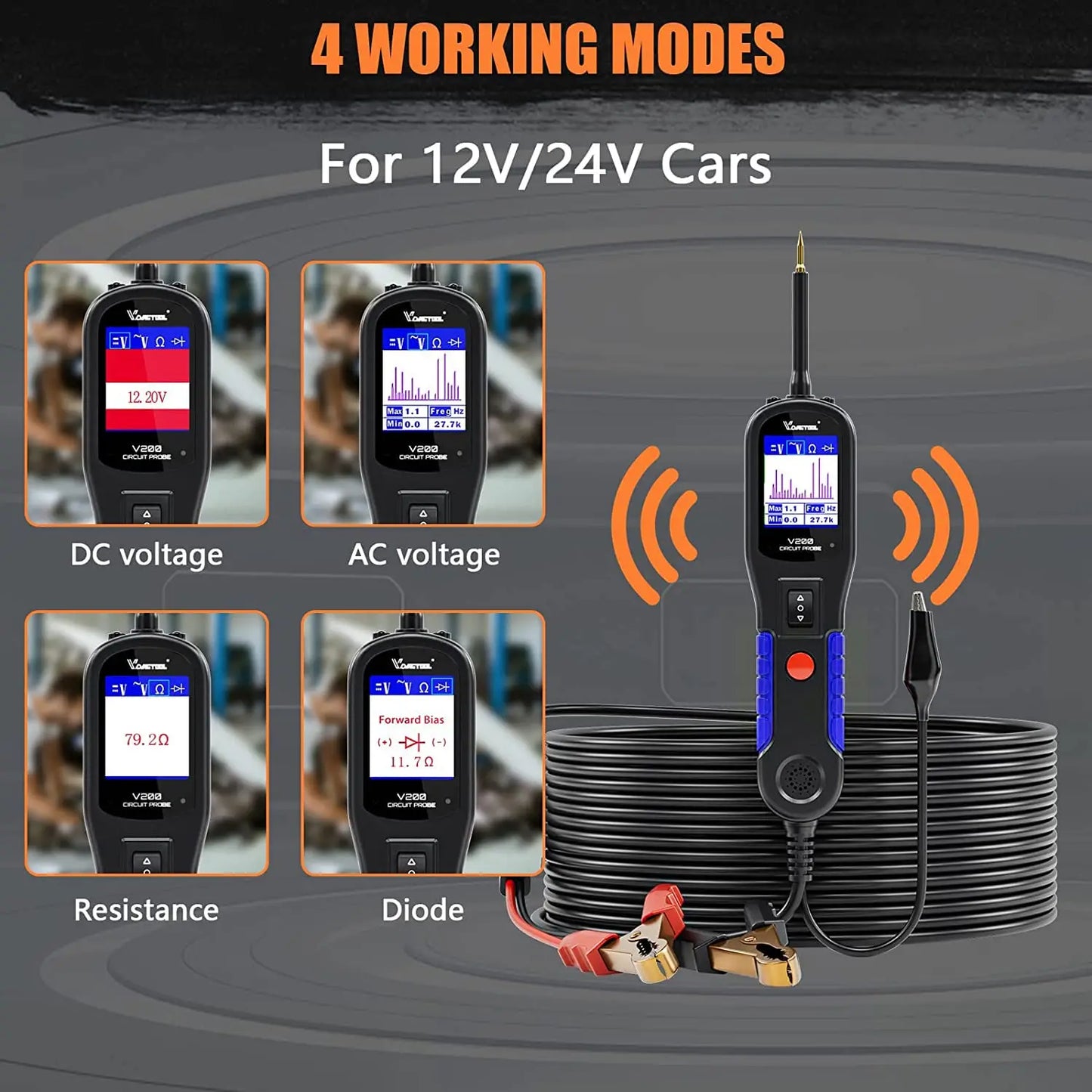

4 Working Modes:

✔DC Voltage: While V200 voltage detector in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

✔AC Voltage: While circuit tester V200 in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. Voltage, the Min. Voltage and frequency.

✔Resistance Test: While Vdiagtool V200 in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

✔Diode Test: In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If switch the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reverse bias.

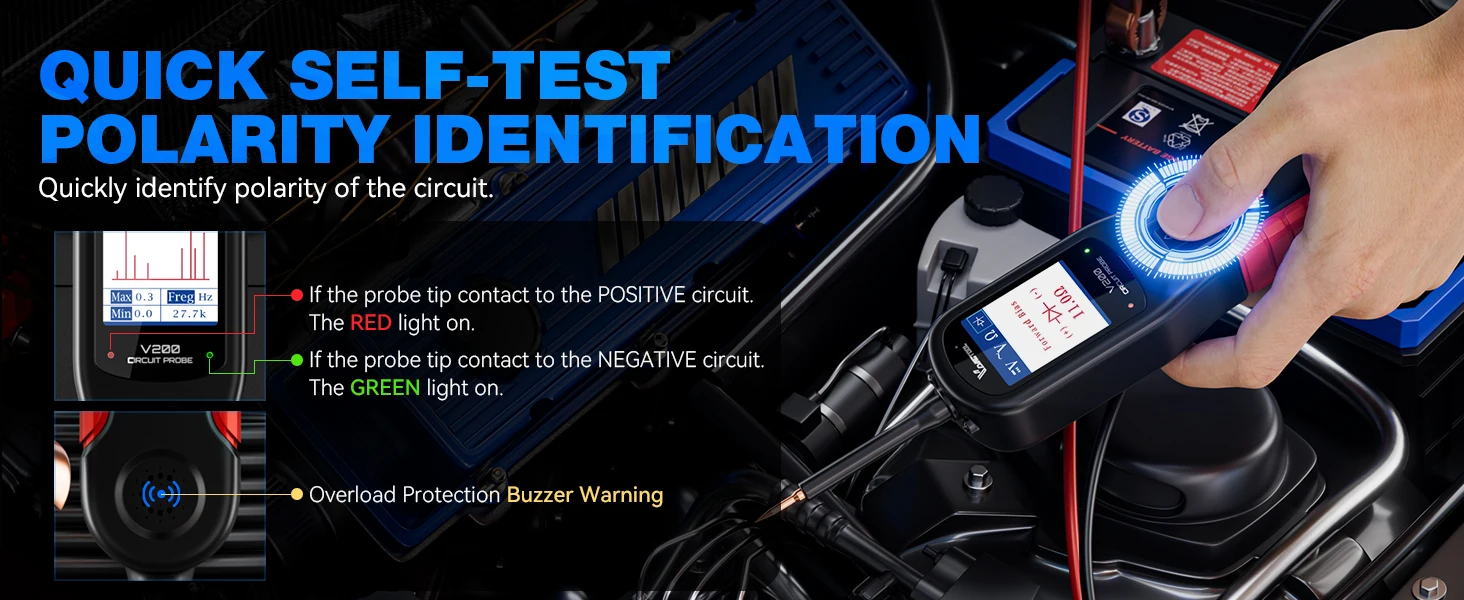

Quick Self-Test:

Before you test a circuit or component, be sure your tool is in good order by doing a quick self-test.

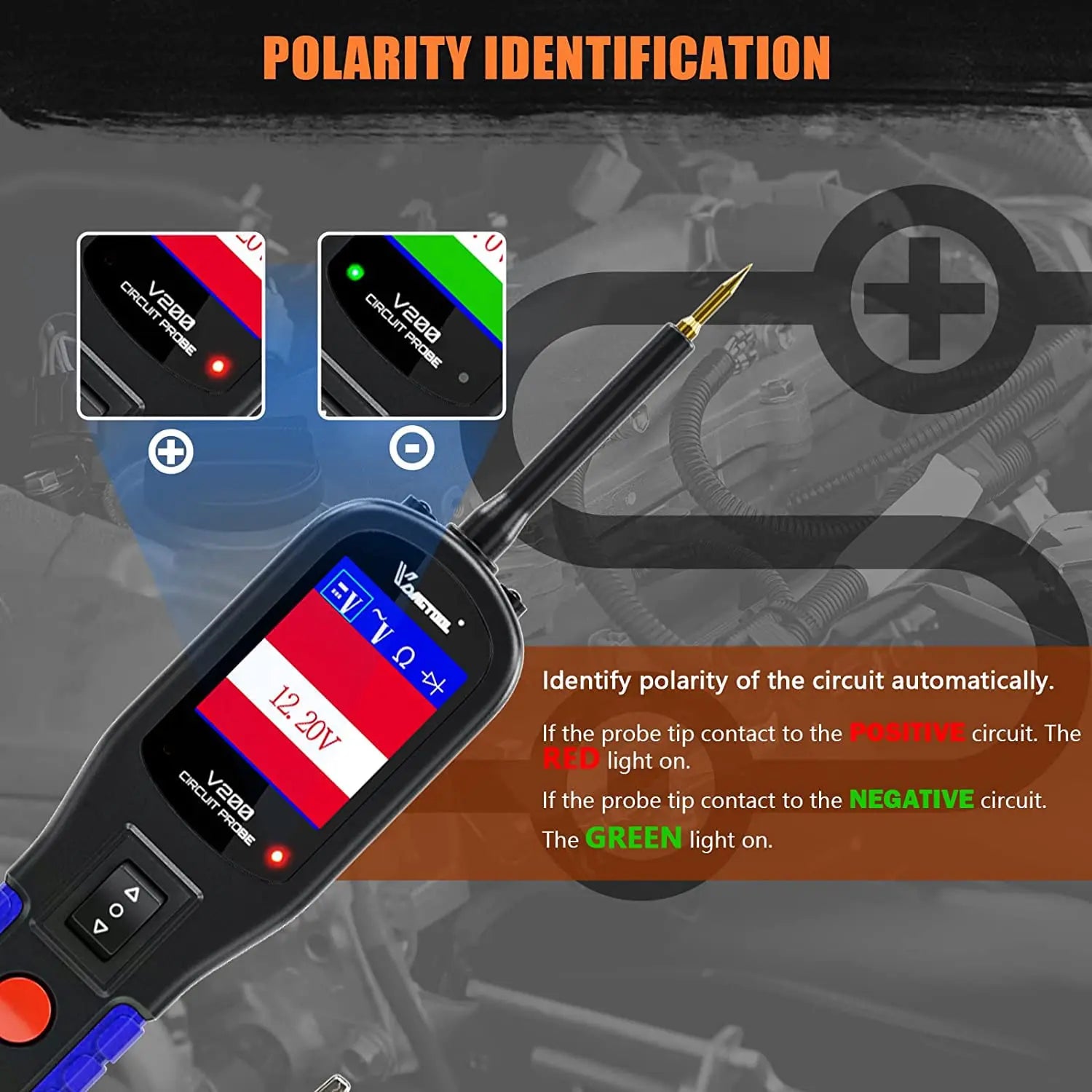

Polarity Identificaion:

VDIAGTOOL automotive probe tester makes it easy to check component continuity and identify positive, negative & open circuits. If the probe tip connects to the positive terminal, the RED LED lights on with beep sounds; If the probe tip connects to the negative terminal, the Green LED lights on with a low tone. Neither LED Lights up when it is an open circuit. You can also use this circuit tester to locate short circuits in your car if you keep getting blown fuses.

Vehicle Activating Component：

VDIAGTOOL automotive probe tester makes it easy to check component continuity and identify positive, negative & open circuits. If the probe tip connects to the positive terminal, the RED LED lights on with beep sounds; If the probe tip connects to the negative terminal, the Green LED lights on with a low tone. Neither LED Lights up when it is an open circuit. You can also use this circuit tester to locate short circuits in your car if you keep getting blown fuses.

Two Charging Mode：

VDIAGTOOL V200 Electrical Circuit Tester Powered by vehicle’s battery and Cigarette Lighter.

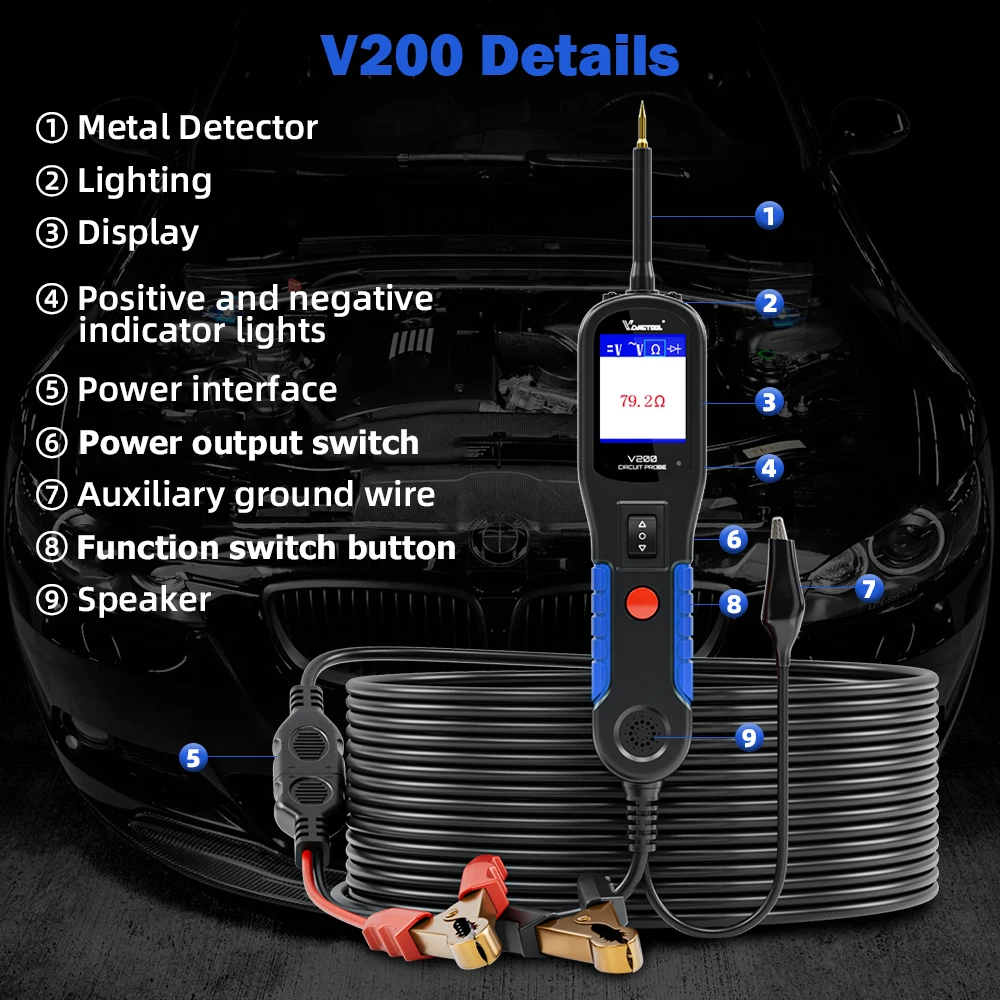

Specifications:

1.Metal Detector;
2.Lighting;
3.Display;
4.Positive and negative indicator lights;
5.Power interface;
6.Power output switch;
7.Auxiliary ground wire;
8.Function switch button;
9.Speaker.

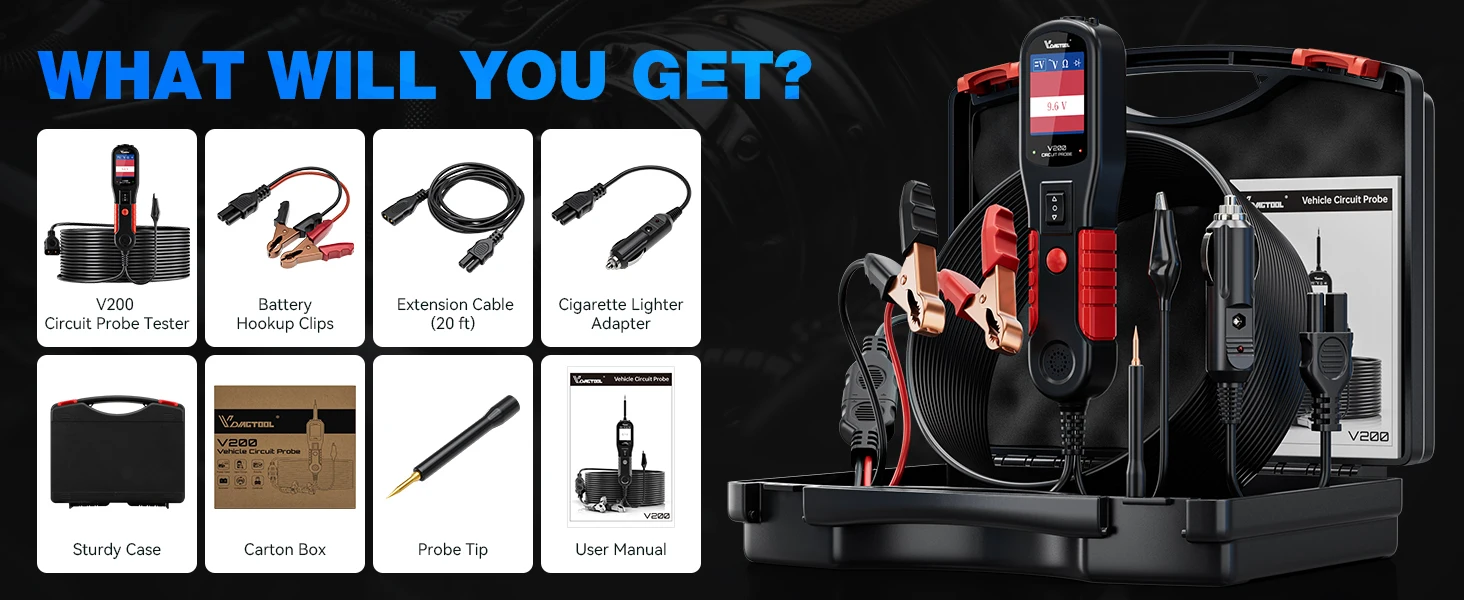

Package list:

1×VDIAGTOOL V200 Electric Circuit Tester
1×Probe Tip
1×20ft Extension Cable
1×Battery Hookup Clips
1×Cigarette Lighter Adapter
1×User's Manual
1×Rugged Blow Molded Case
