SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Origin: Mainland China

DUAL USB SOLAR CHARGE CONTROLLER: Using innovative MPPT technology high tracking efficiency up to 99%; Please refer to the information if you are not familiar with Mppt technology: There are many kinds of MPPT technology, Our Solar Controller Mppt technology is to detect the maximum charging current, not the boost type or the automatic charging of the solar panel voltage.

MULTIPLE INTELLIGENT PROTECTION: Built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the controller, a reliable protector for your devices. To protect the lifespan of your battery, once the voltage of the battery drops below 8V, the solar controller will turn off automatically.

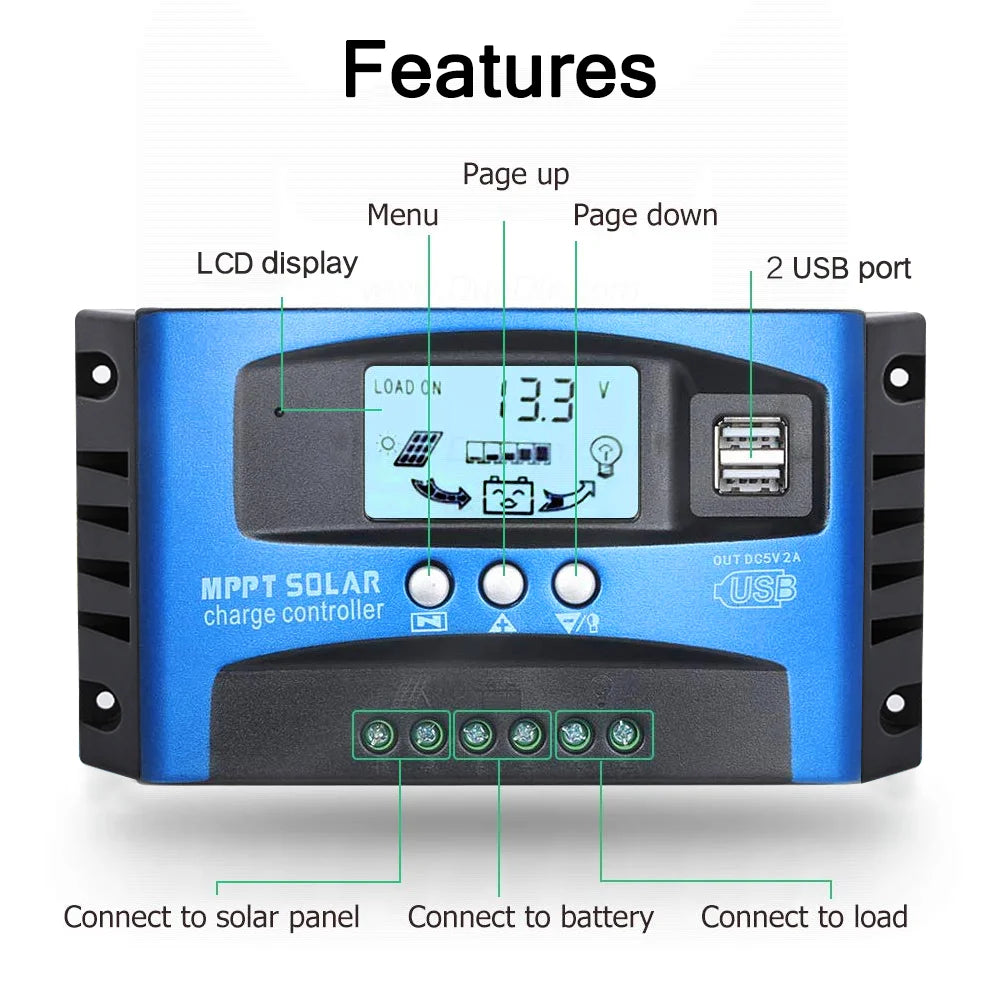

FUNCTIONAL LCD SCREEN: Easy to install and operate, Intuitive LCD display that can clearly indicate the status and data is able to switch modes and parameter configuration. The level of complete power-off is adjustable, which can perfectly protect the lithium battery from over-discharge, suitable for home, industrial, commercial etc.

INDUSTRIAL-GRADE MASTER CHIP: 16AD sampling accuracy, temperature Charging current, discharge current accurate real-time display, power generation at a glance.

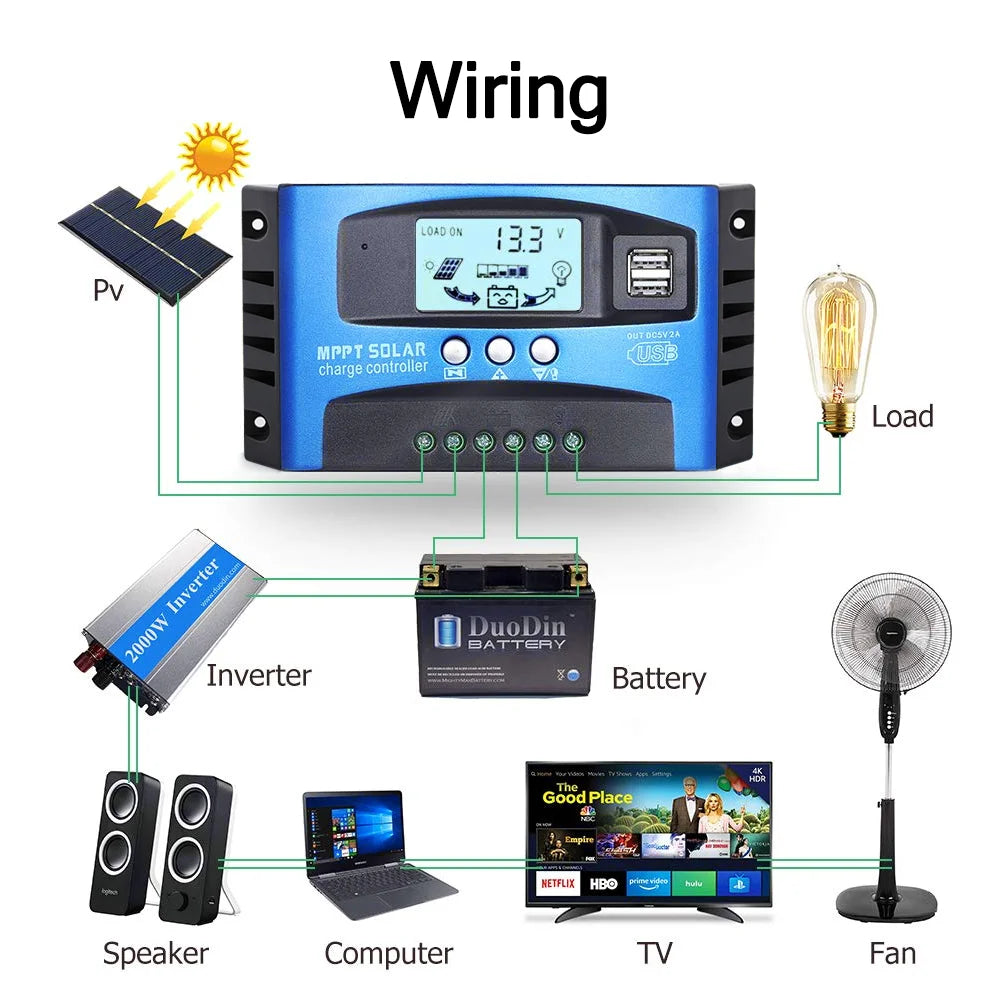

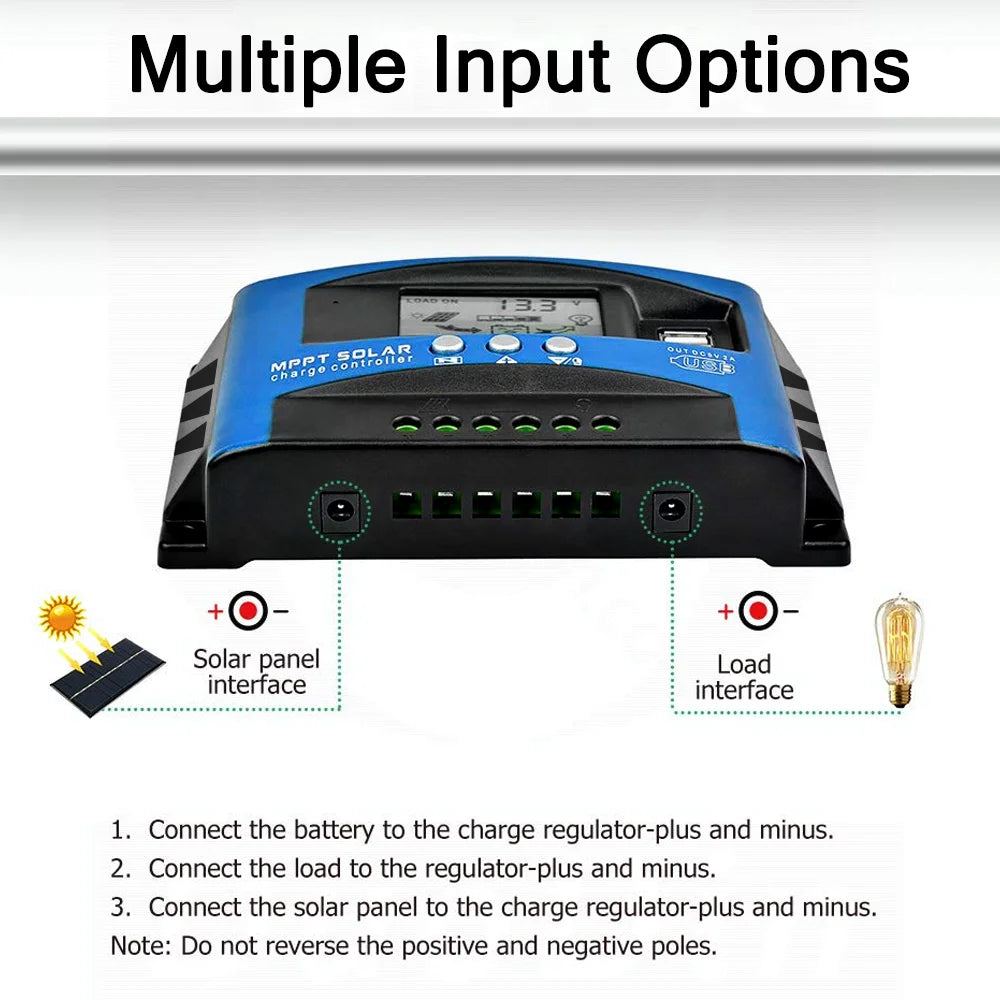

EASY TO INSTALL AND OPERATE: The charge controller should connect the battery first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order. Dual mosfet Reverse current protection, low heat production. Charge controller not to connect the grounded to make the light run. It Can charge the battery and supply power to the load at the same time.


Specifications:
Battery voltage: 12V/24V Auto Adapt
Material: ROHS+ABS
Item color: blue+black

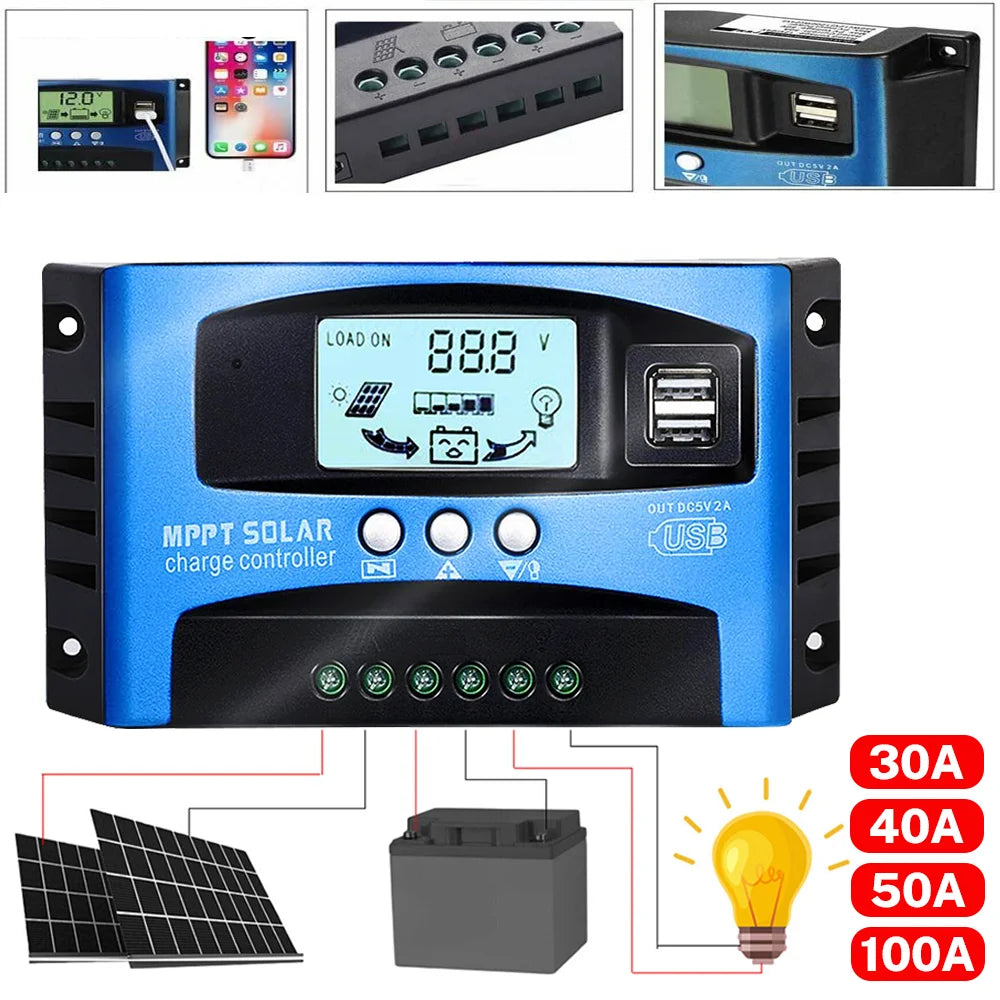

Charge current: 30A, 40A, 50A, 100A (optional)

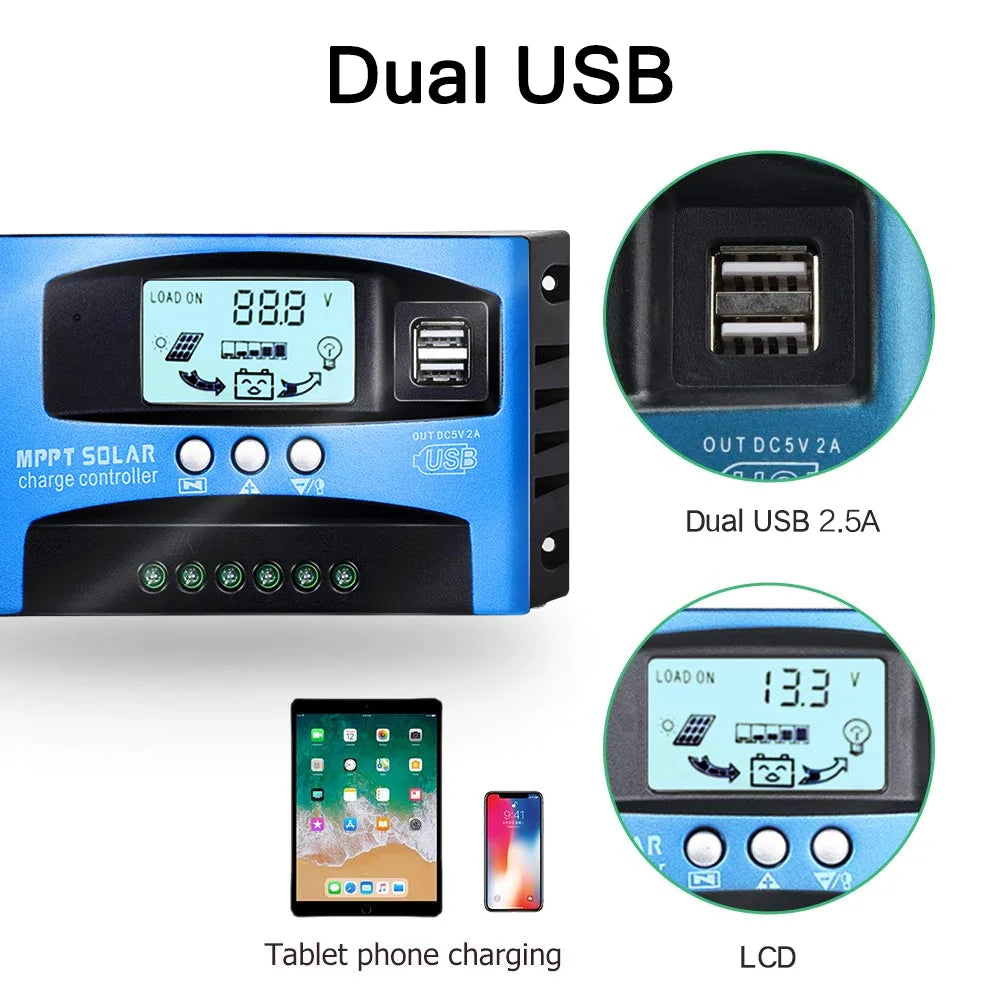

USB output: 5V 2A

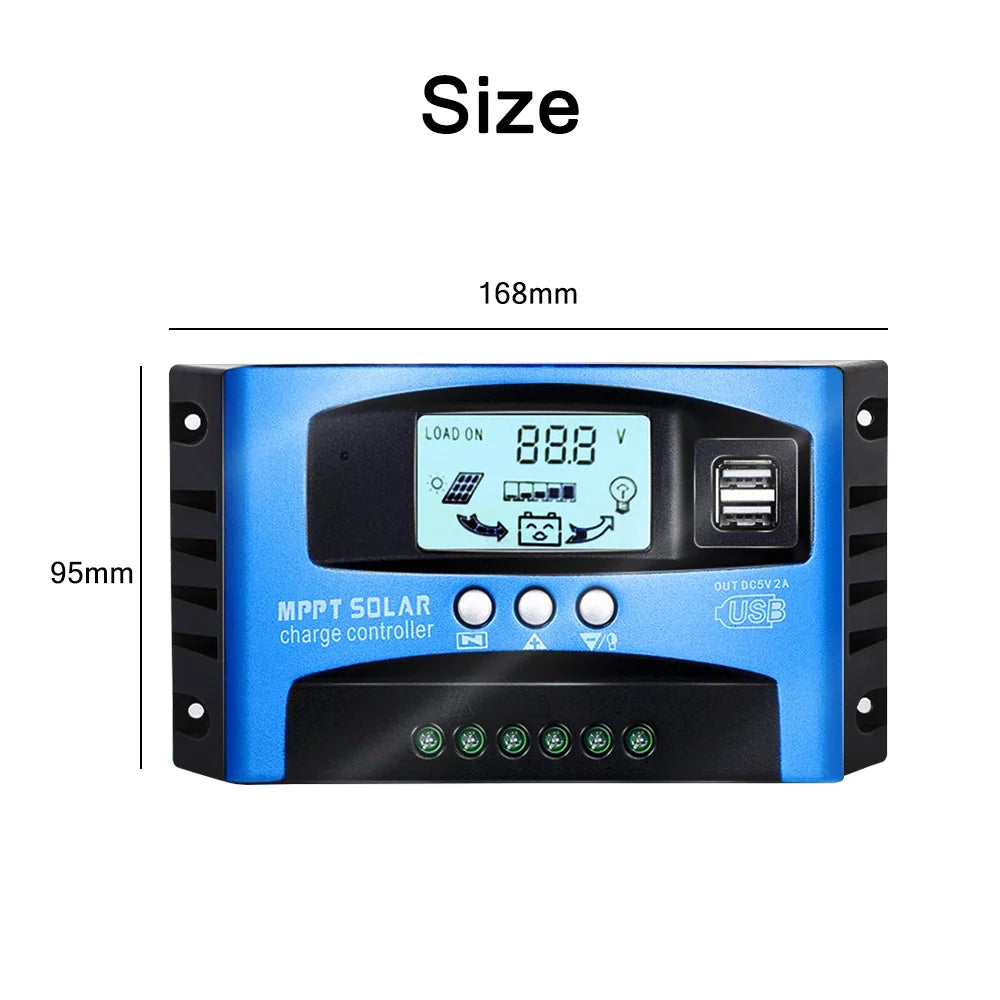

Item size: 170 * 95 * 40 mm / 6.69 * 3.74 * 1.57 in
Item weight: 260 g / 9.17 ounce


Notes:
1. What is MPPT?
Automatic load tracking aggregation.
2. Why "Only works with the battery connected, turn on the solar panel charges the battery, charge does not work"? Why is it less than 100A?
We are a current-focus MPPT with two constantan wires designed to detect current and maximum open-load when more 1A.This technology is our patent practice, and has been recognized by the state, with a special patent certificate of invention.There is no such technology on the market.
Compared with other MPPT MPPT-inductive buck-boost type, the same solar charging condition, our current-focusing MPPT current tracking efficiency is higher, because of the power loss caused by the booster and the step by step down.
In fact, the effectiveness of very low light charging is very low because the input power is very small. And our MPPT can also increase the load under relatively low illumination. Our MPPT is straight-through type. When the current is greater than 1A, it will not be tested. The chain will be charged directly. Only when it is charged to 95% of the battery, will it slow down and protect the battery.

Package list:
1 * Solar charge controller
