SucceBuy 2/3 Spool 11GPM3600PSI Directional Hydraulic Control Valve Double Acting Suitable Use for Pump Hydraulic Cylinder Motor

SucceBuy 2/3 Spool 11GPM3600PSI Directional Hydraulic Control Valve Double Acting Suitable Use for Pump Hydraulic Cylinder Motor

$120.69 AUD
$287.35 AUD $120.69 AUD
Sale Sold out

SPECIFICATIONS

AB: G3/8

Brand Name: SucceBuy

Center system: Open

High-concerned chemical: None

Nominal flow: 11gpm (40l/min)

Origin: Mainland China

PABTN: 3/8 " Unthreaded sealed cylindrical pipe threads

Range of working temperature: -20°C~80°C

Relief valve: Adjustable

Spool Count: 2/3 Spool

Suitable Media: Oil

Valve Operation: Manual

Product Description

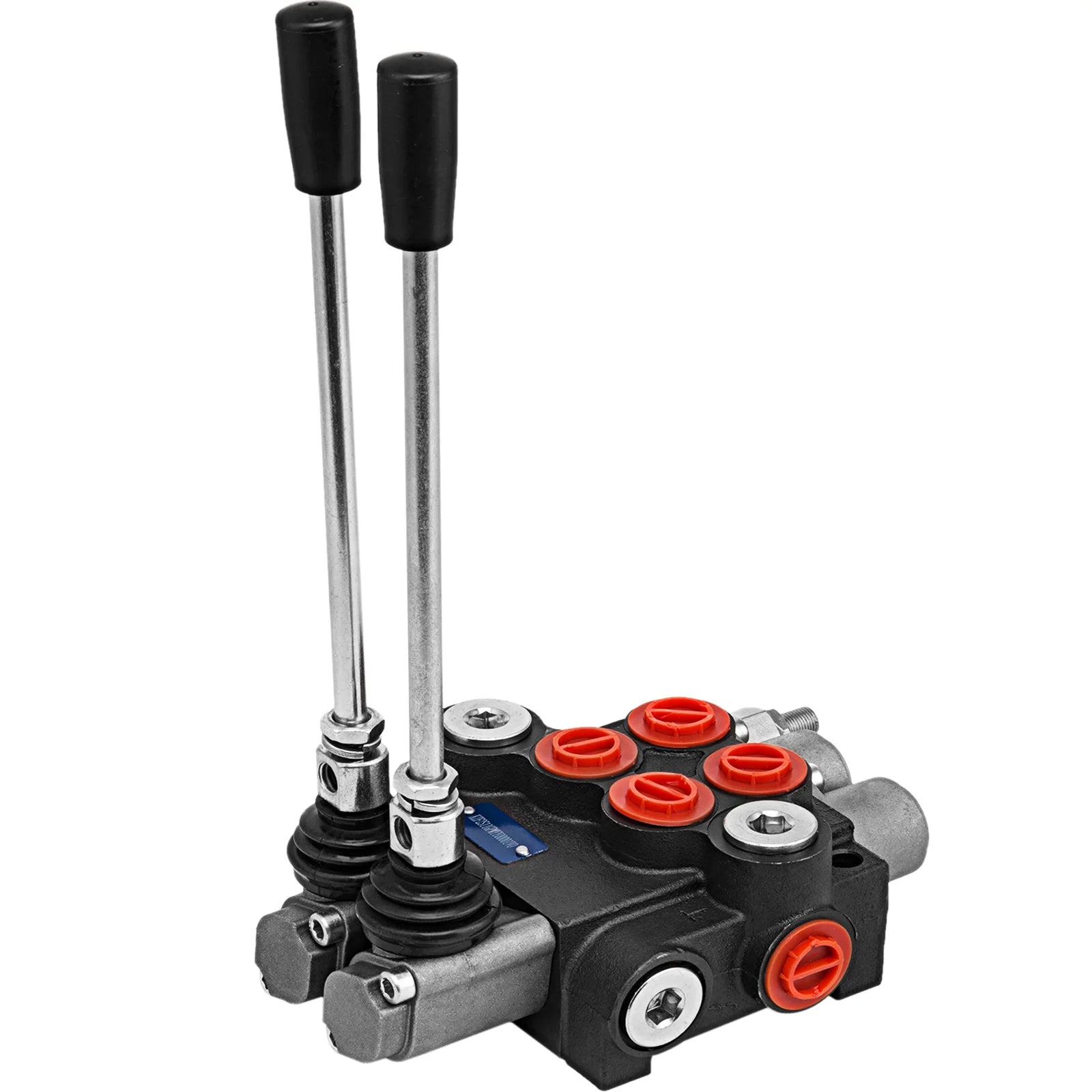

2 Spool Directional Hydraulic Control Valve
The compact design of the 2-spool valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.

  • Solid Construction

  • Excellent Performance

  • Spring Return

  • Inner Check/Relief Valve

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBUy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Succebuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

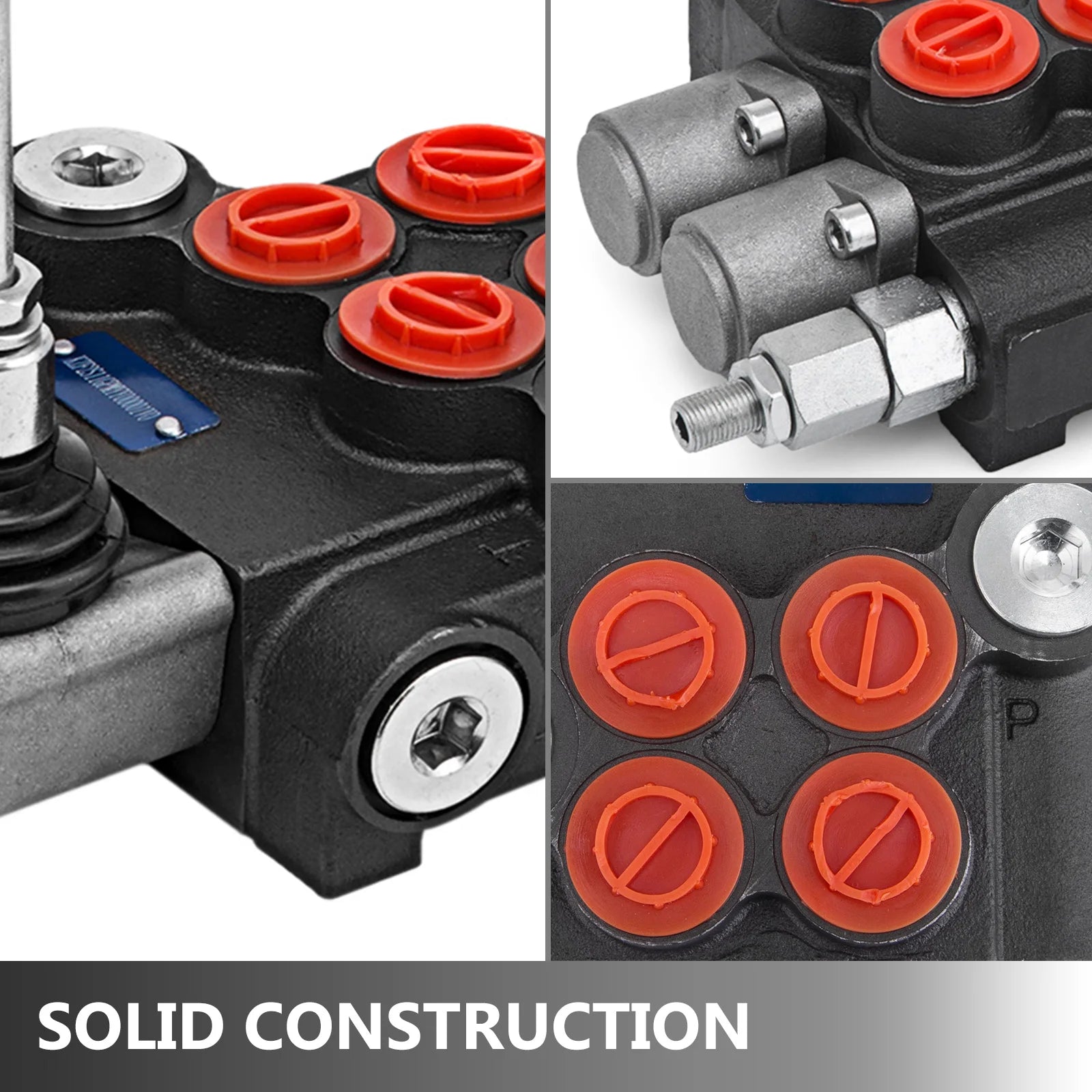

Solid Construction
Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.

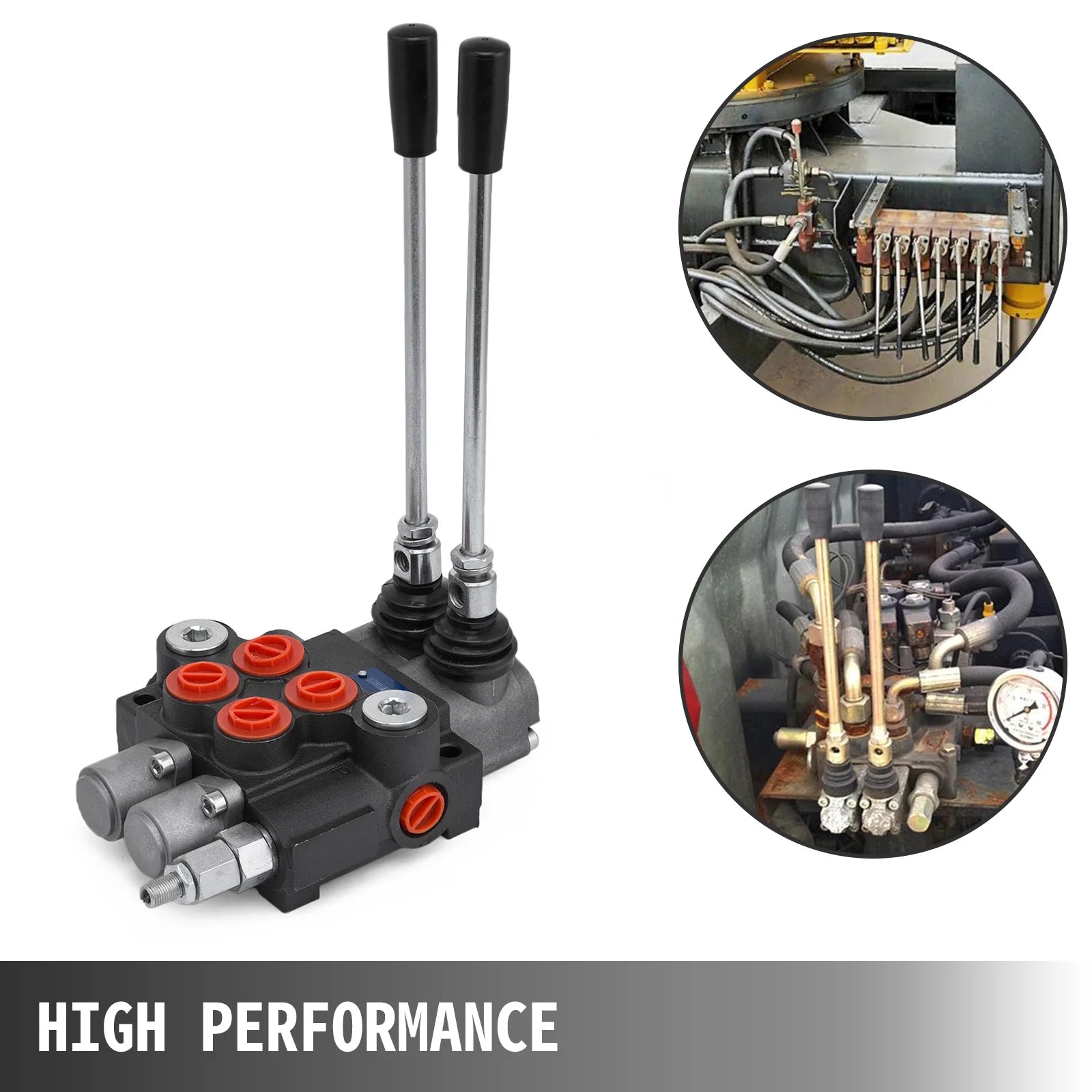

High Performance
The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

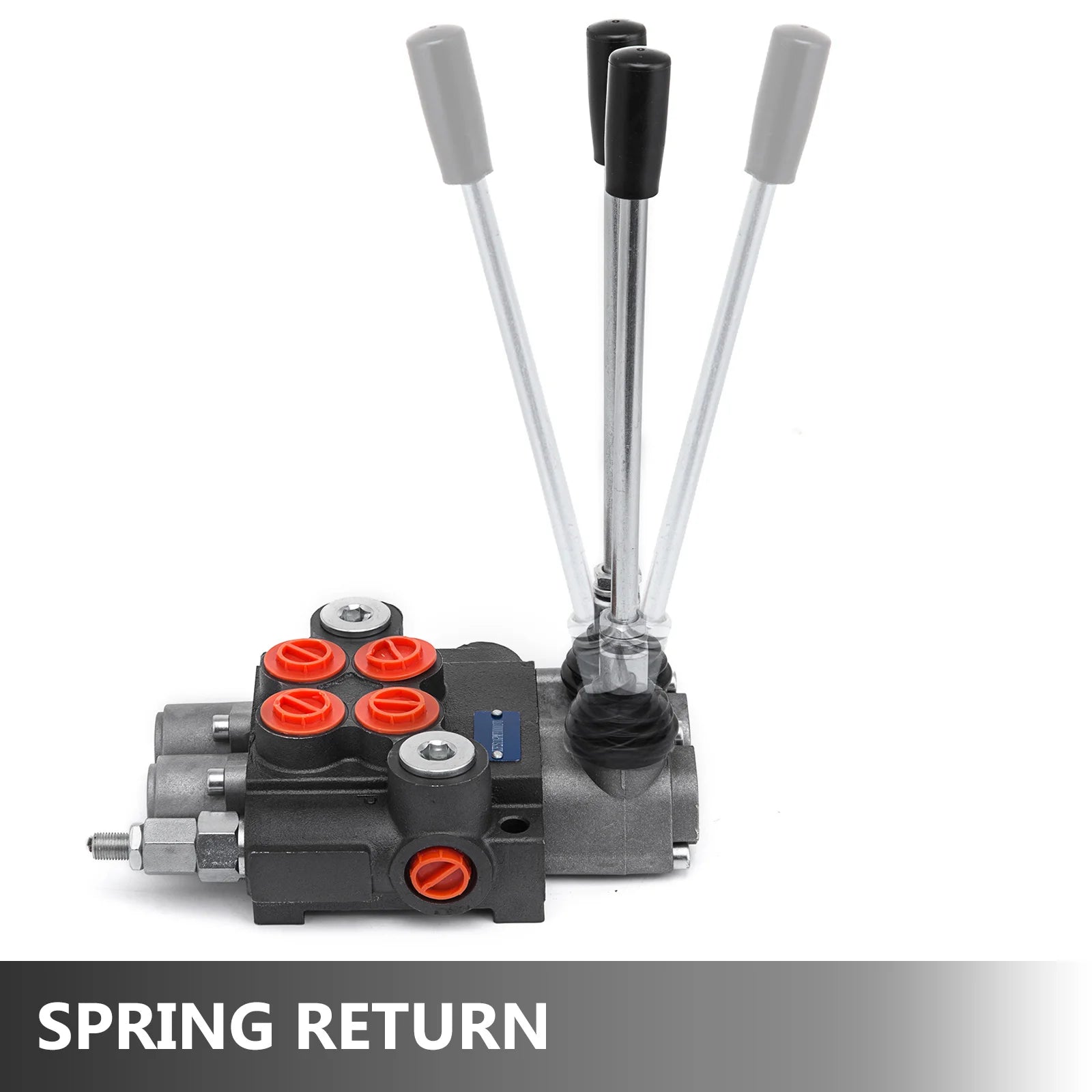

Spring Return
All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

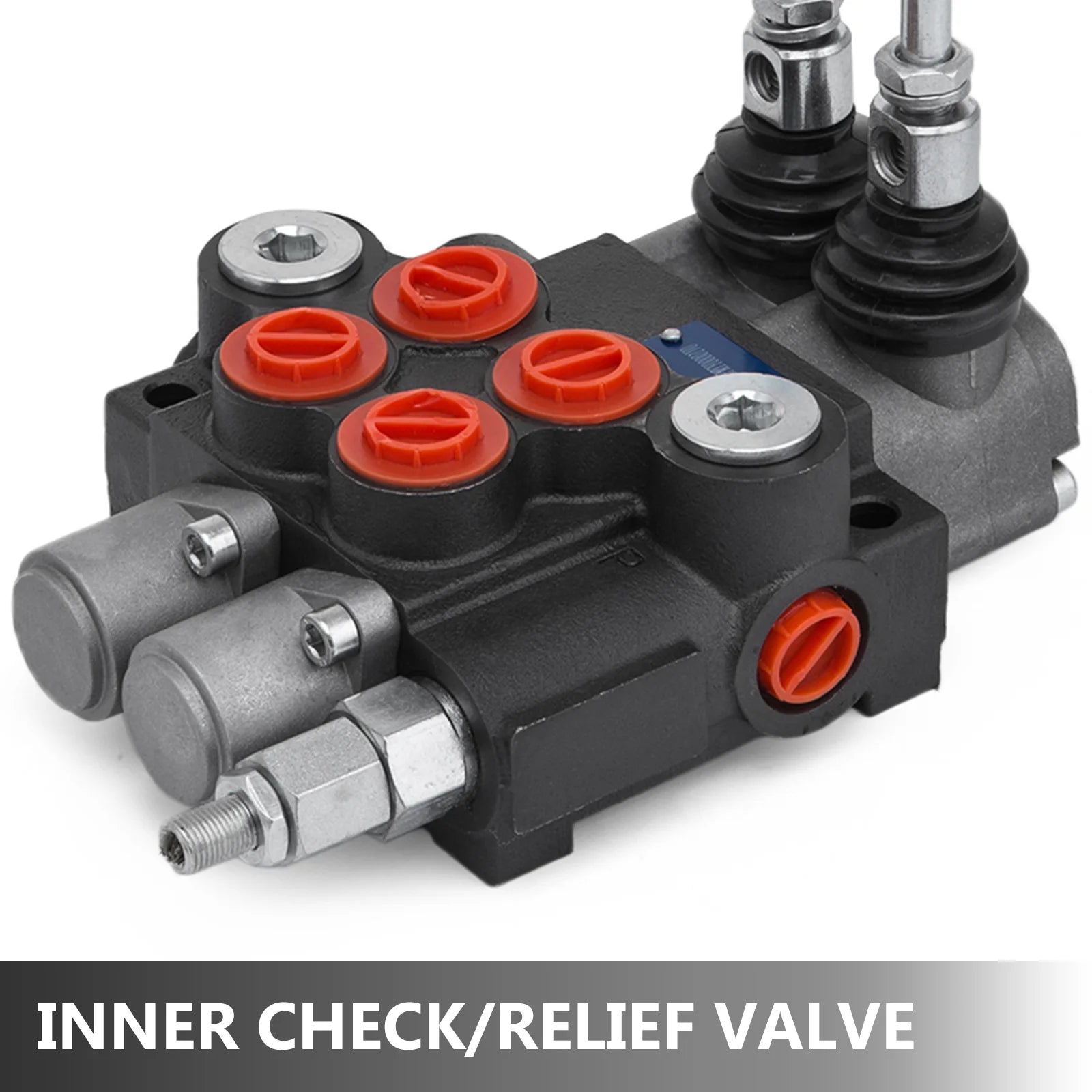

Inner Check/Relief Valve
The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.
Multiple Control Ways
We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.

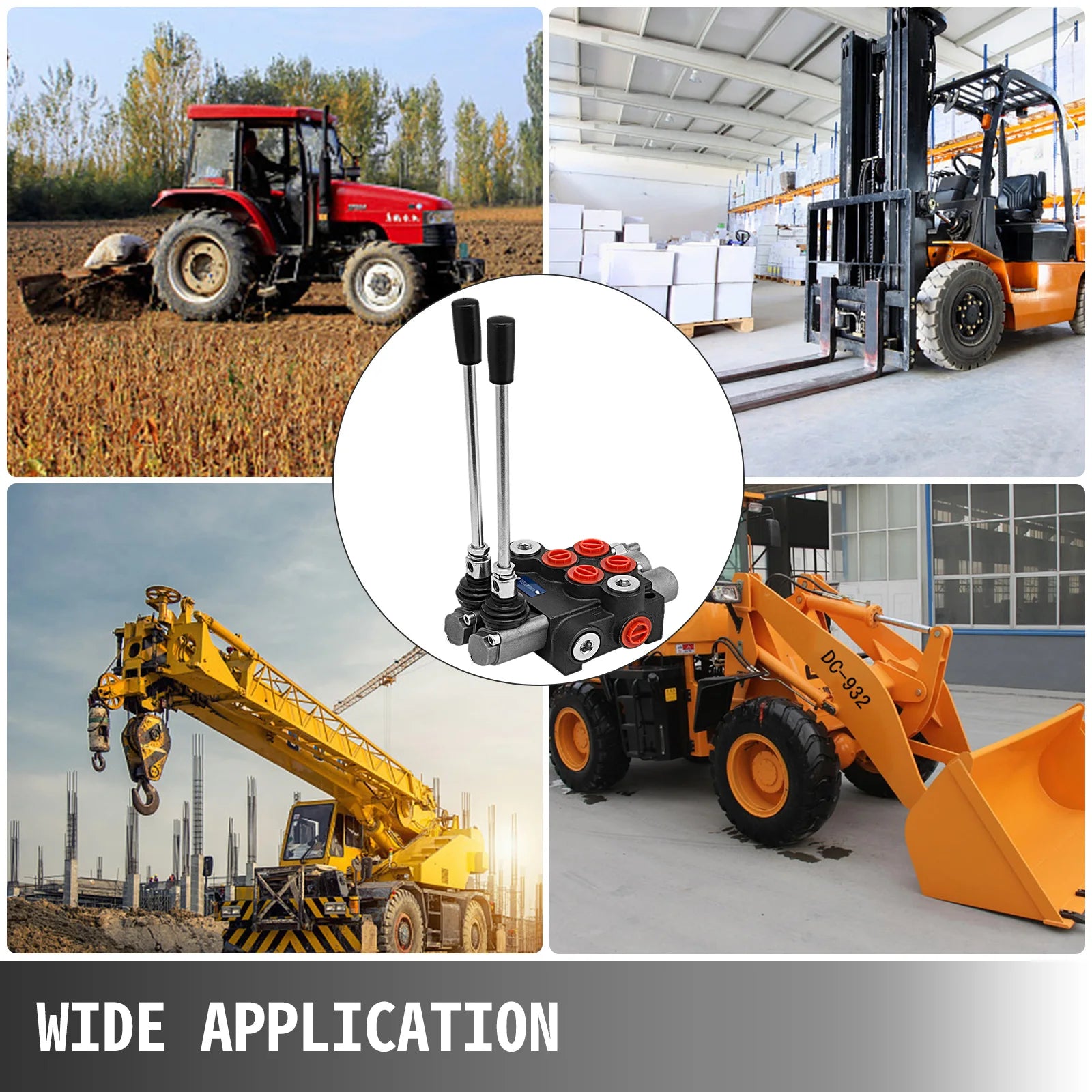

Wide Application
The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.
Specifications

  • Max operating pressure: 3600psi

  • Nominal flow: 11gpm (40l/min)

  • Relief valve: Adjustable

  • Center system: Open

  • A, B ports: 1/2" BSPP

  • P, T, N port: 1/2" BSPP

  • Weight: 14lb (6.3 kg)

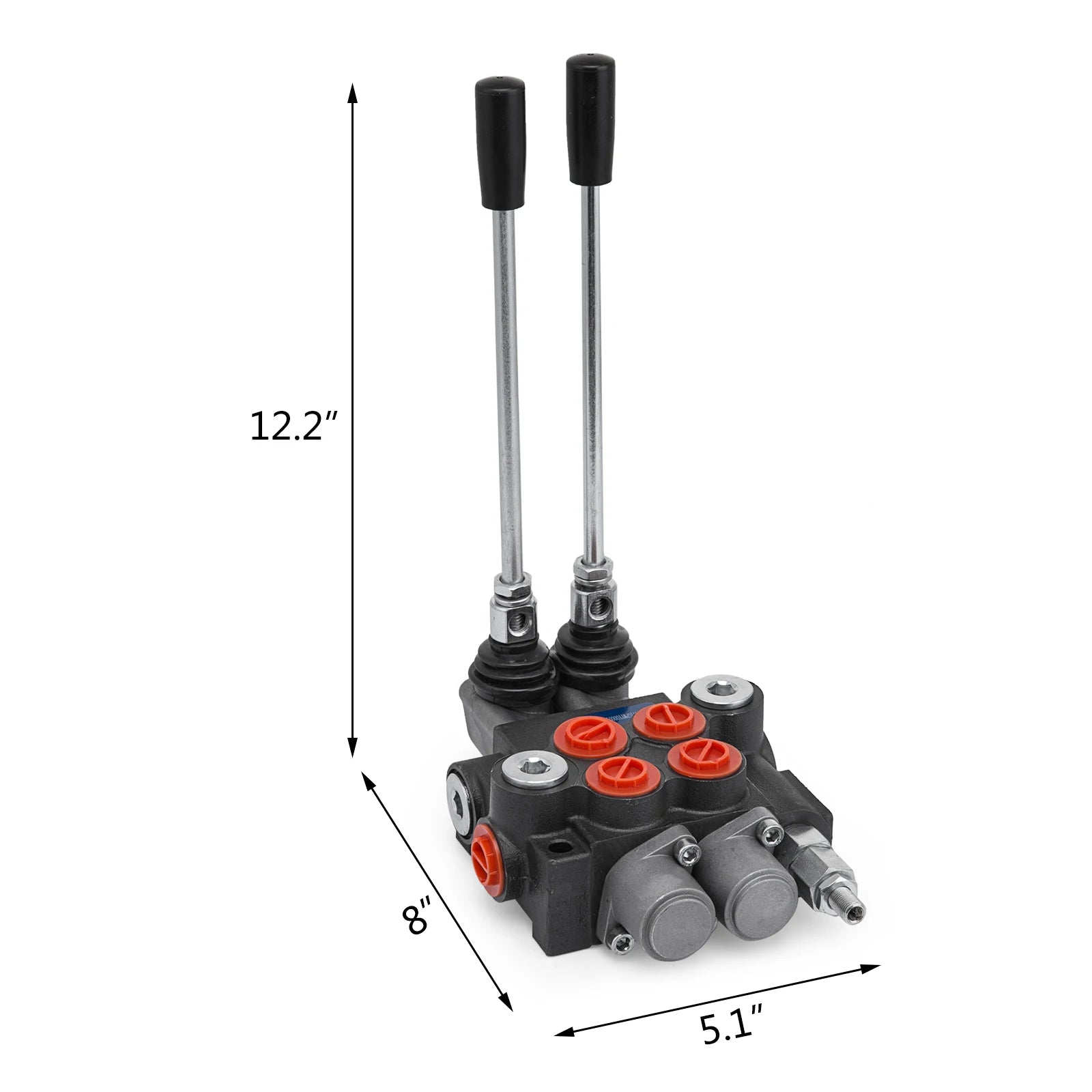

  • Dimensions: 12.2''x8x5.1'' / 31x20.3x12.95 cm

Package Content

  • 1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool

Specifications

  • Max operating pressure: 3600psi

  • Nominal flow: 11gpm (40l/min)

  • Relief valve: Adjustable

  • Center system: Open

  • P, T, N port: 1/2" BSPP

  • Dimension: 16.1''x5.1''x2.6'' (41x13x6.5 cm)

Package Content

  • 1 x 2 Spool Hydraulic Joystick Control Valve 11gpm, Double Acting Cylinder Spool

Specifications

  • Nominal flow: 11gpm (40l/min)

  • Spool count: 3 Spool

  • PABTN: 3/8 " Unthreaded sealed cylindrical pipe threads

  • PTN: 1/2"

  • AB: G3/8

  • 7/8-14UNF；3/4-16UNF

  • Relief valve: Adjustable

  • Center system: Open

  • Weight: 14.6 lb (6.6 kg)

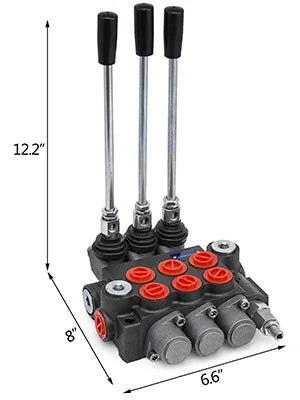

  • Dimensions (L* W* H): 12.2"*8"*6.6" (31*20*16.8 cm)

Package Content

  • 1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM

Features & Details

  • 【DOUBLE ACTING】- Our hydraulic control valve is made for operating double-acting cylinders.

  • 【DURABLE QUALITY】- This hydraulic directional control valve comes with 2 spools and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.

  • 【HIGH PERFORMANCE】- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

  • 【SPRING RETURN】- All spool valves come with spring return, which can return to the neutral position.

  • 【WIDELY USED】- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
