SucceBuy Diesel Fuel Injector Nozzles Tester with Scale Gauge Common Rail Pressure Tester Repair Tool for Automobiles Tractors

SucceBuy Diesel Fuel Injector Nozzles Tester with Scale Gauge Common Rail Pressure Tester Repair Tool for Automobiles Tractors

$204.28 AUD
$486.37 AUD $204.28 AUD
Sale Sold out

SPECIFICATIONS

Applicable models: Diesel Engine Vehicle

Brand Name: SucceBuy

Can test pressure: ≥35.0MPa (350 bar)

Certification: CE

Diesel Model: 6190/6200/6170

Electronic: No

External Testing Certification: ce

Fuel tank capacity: 4000mL

G.W: 14lbs/6 kg

High-concerned chemical: None

Is Batteries Included: No

Measuring ranges: 0 to 600 bar & 0 to 8000 PSI

Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5

Oil Cup: 0.8L

Origin: Mainland China

Plunger Hole: 2.5 Inch

Pressure range: 0-60Mpa

Product Size: 5x4.5x16.5 in / 12.7x11.4x41.9 cm

Type: Car Repair Tools/Fuel Tester/Diesel Fuel Injector Nozzles Tester/Fuel Pressure Tester


Product Description

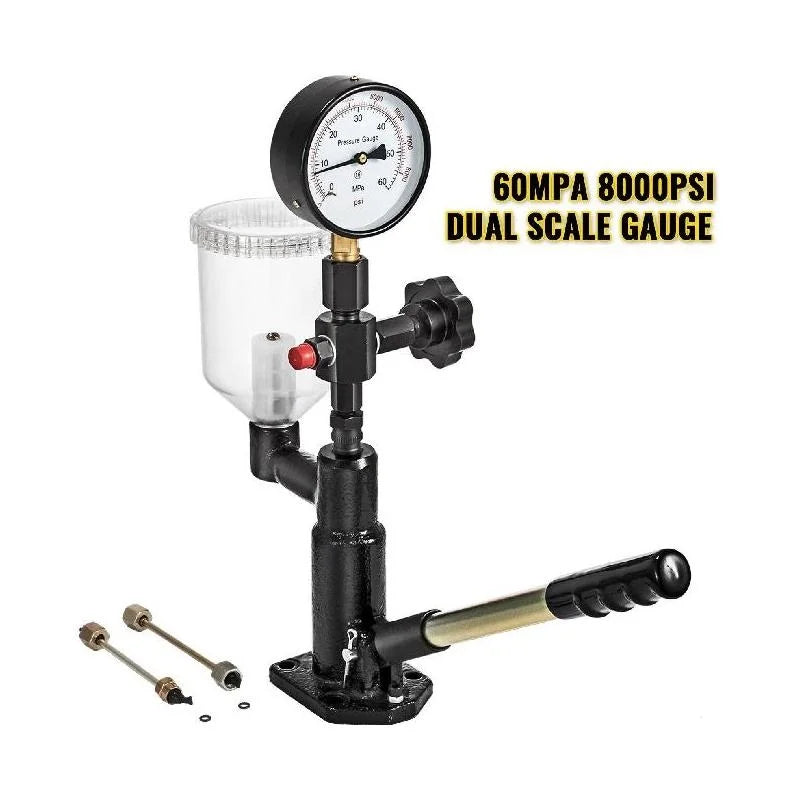

SucceBuy Diesel Fuel Injector Nozzles Tester 60MPa
Precision Testing & Durable Build
The SucceBuy Diesel Fuel Injector Nozzles Tester 60MPa is essential for adjusting injector opening pressure and conducting various tests such as leak tests and atomization modeling. Built with premium aluminum for durability, it features a dual scale gauge (0 to 600 BAR / 0 to 8000 PSI) that enhances stability during operations, ensuring accurate results and prolonged gauge lifespan. Ideal for maintaining injector performance in automotive and industrial settings.

  • Durable Premium Aluminum Construction

  • Wide Measuring Range for Versatility

  • Accurate and Reliable Test Results

  • Comes with Standard Accessories for Convenience




Key Features
High-Performance Configuration
Includes essential parts for injector calibration and all necessary installation accessories. Prior to use, flush the tester using the operating lever and spray it into the extraction unit without the nozzle.

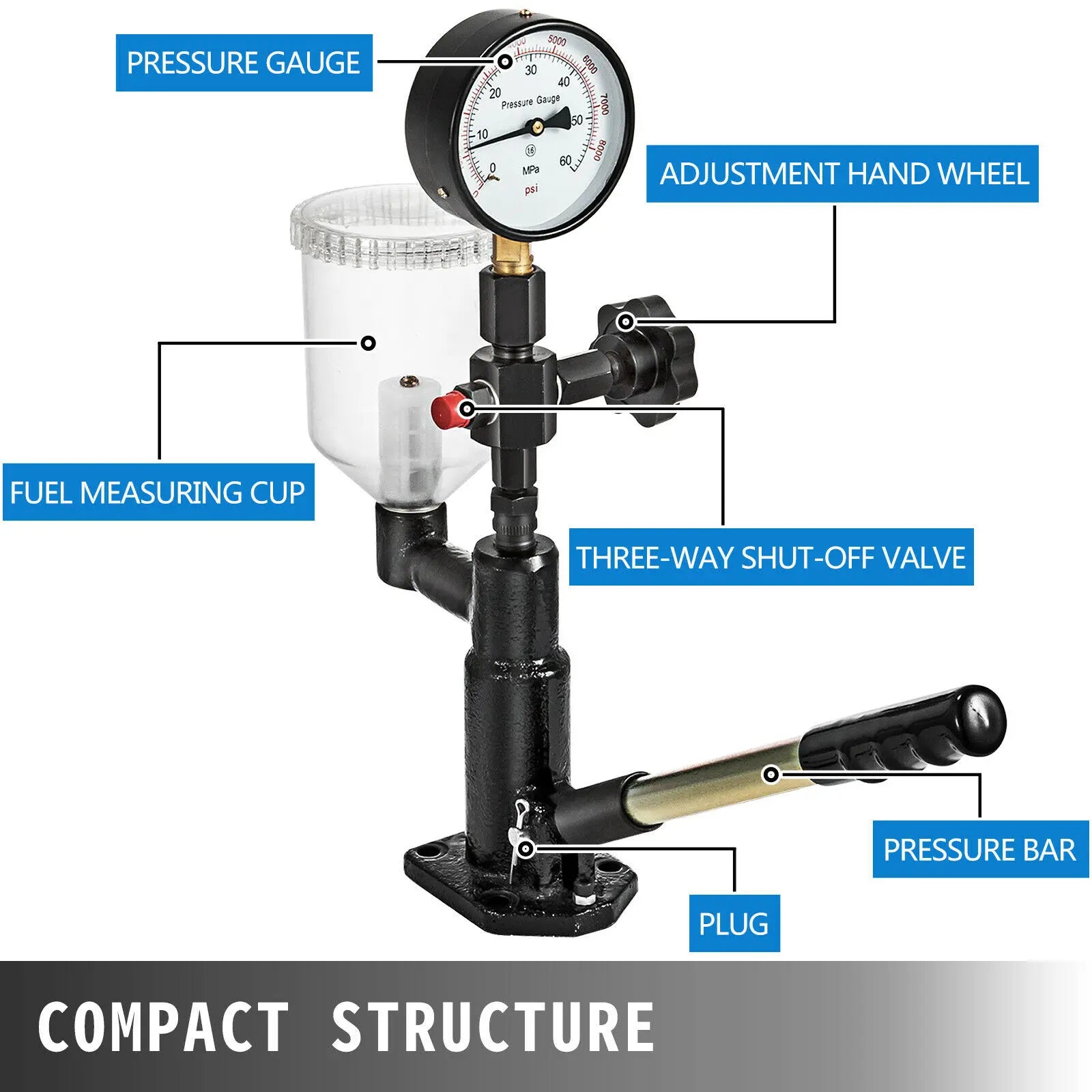

Compact Design with Detailed Engineering
Compact structure with a safety-guarded three-way stop valve, easy connection, and stable mounting base. The 2/5" plunger hole ensures powerful operation.

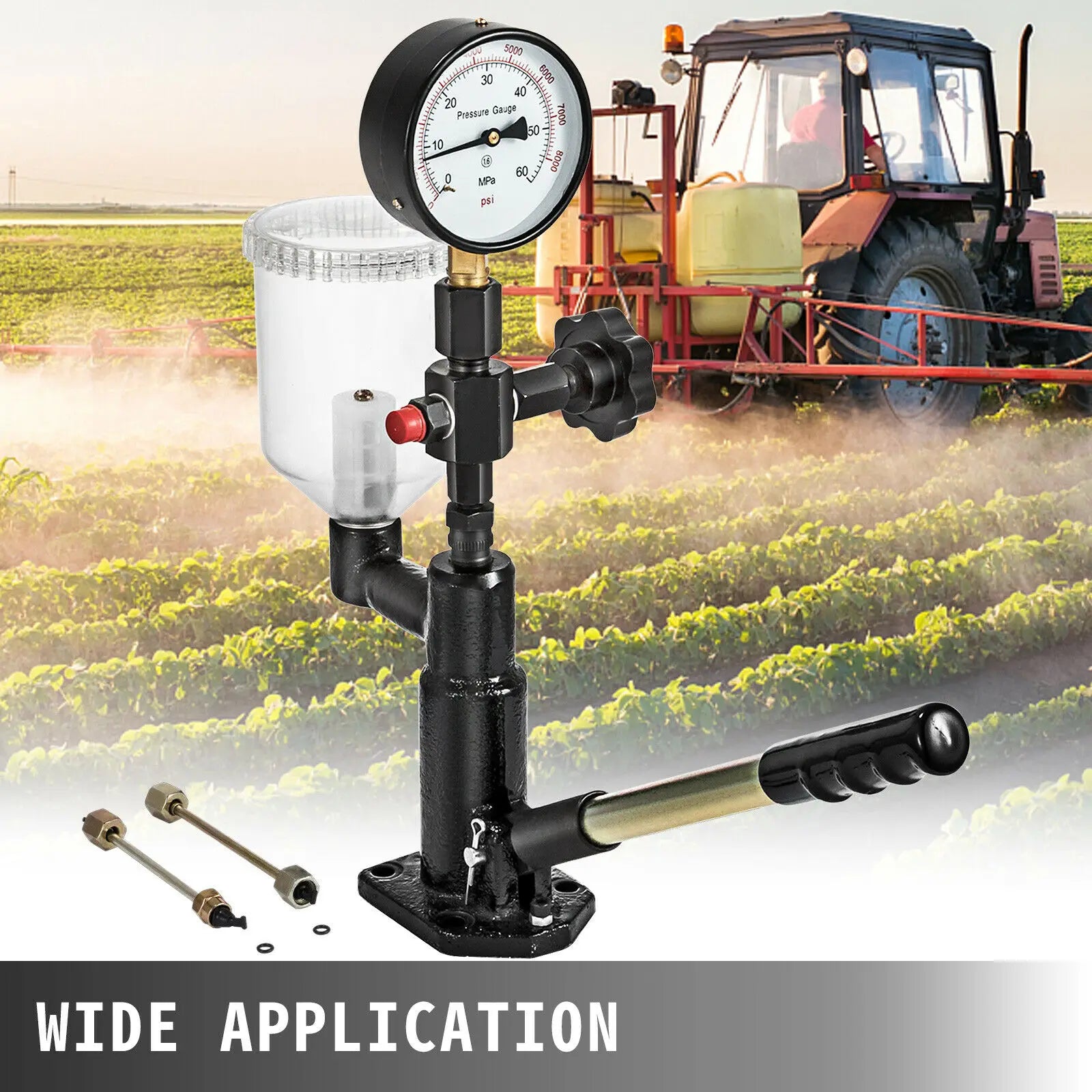

Broad Automotive Application
Ideal for calibrating diesel engine injectors in automobiles and tractors. Suitable for all diesel injector types except Common Rail Diesel Injectors (CRDI).
Versatile Testing Capabilities
Specialized equipment for comprehensive fuel injector inspections, including opening pressure, leakage, atomization, and chattering tests. Simple operation with diverse functions.

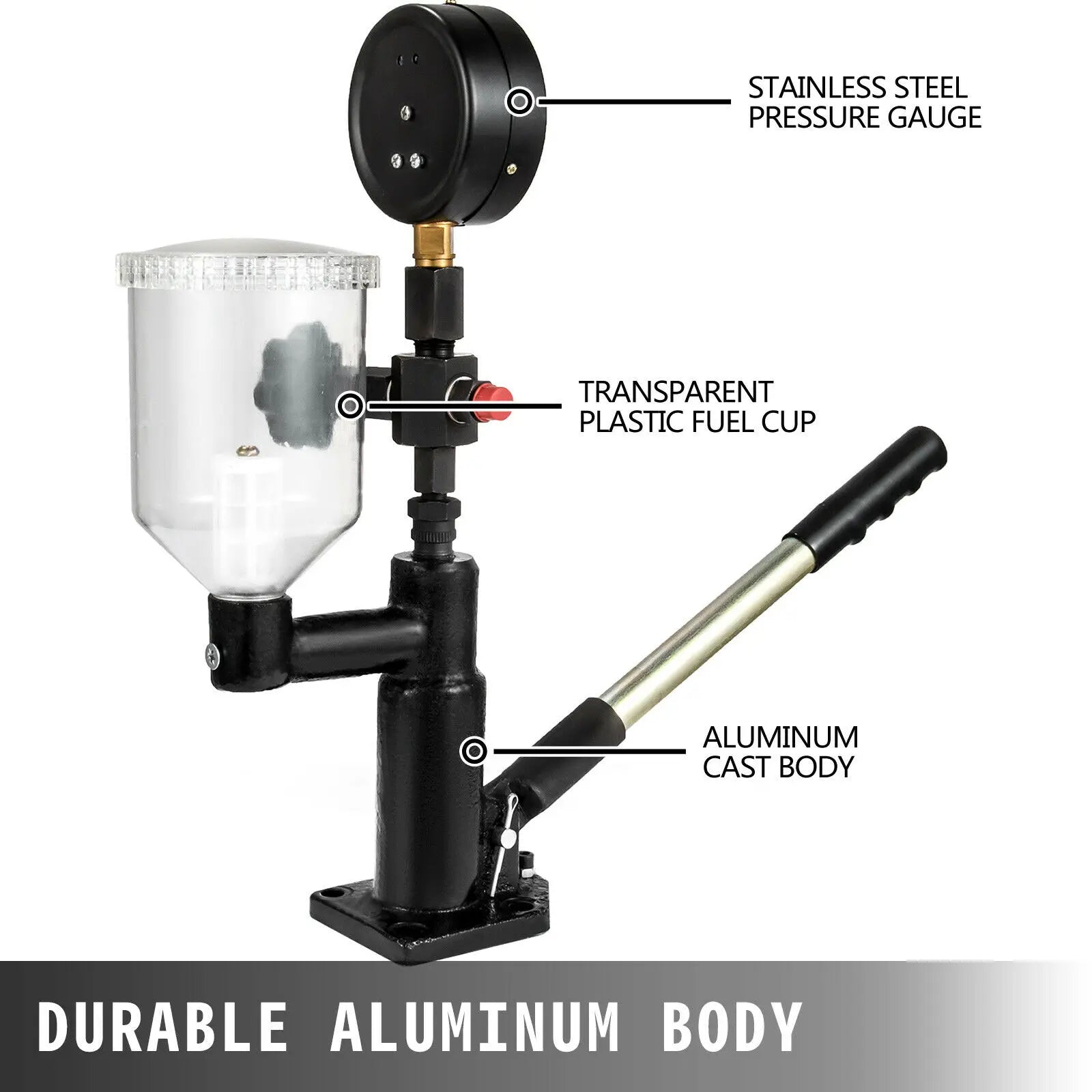

Robust Aluminum Construction
Crafted from durable aluminum and equipped with a stainless pressure gauge and transparent plastic oil cup for extended durability.

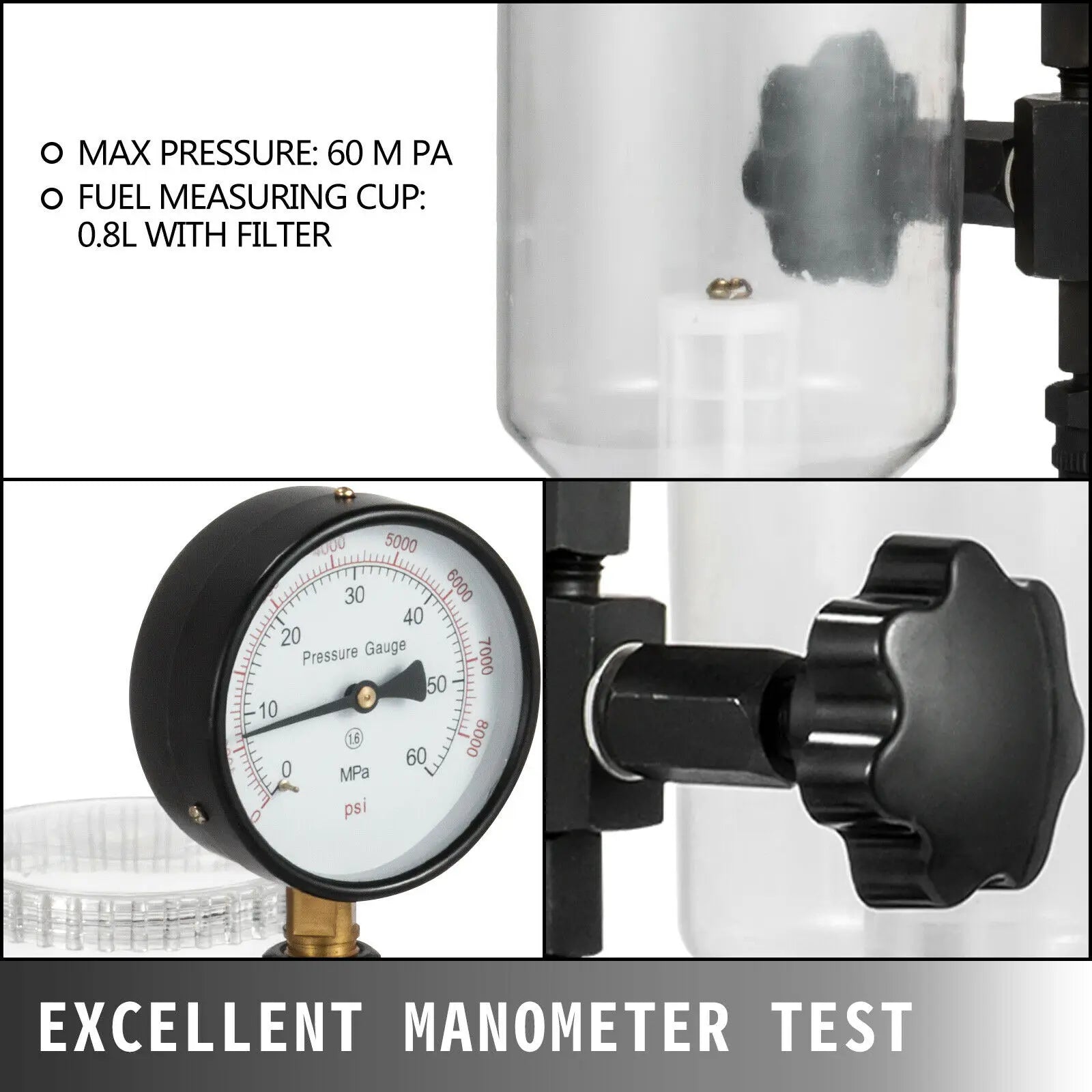

Precise Manometer Testing
Features a 0-60 MPa (0-600 bar / 0-8000 psi) pressure gauge and 0.8L fuel measuring cup with a 5-micron Bosch filter for accurate injector opening pressure and valve testing.
Specifications

  • Color: Black

  • Measuring ranges: 0 to 0600 bar & 0 to 8000 PSI

  • Pressure range: 60Mpa (600 bar)

  • For 6190/6200/6170 Diesel

  • Can test pressure: ≥35.0MPa (350 bar)

  • Fuel tank capacity: 4000mL

  • Oil Cup:0.8L

  • Pressure: 0-60Mpa

  • Plunger Hole: 2/5''

  • Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5

  • Applicable models: Diesel Engine Vehicle

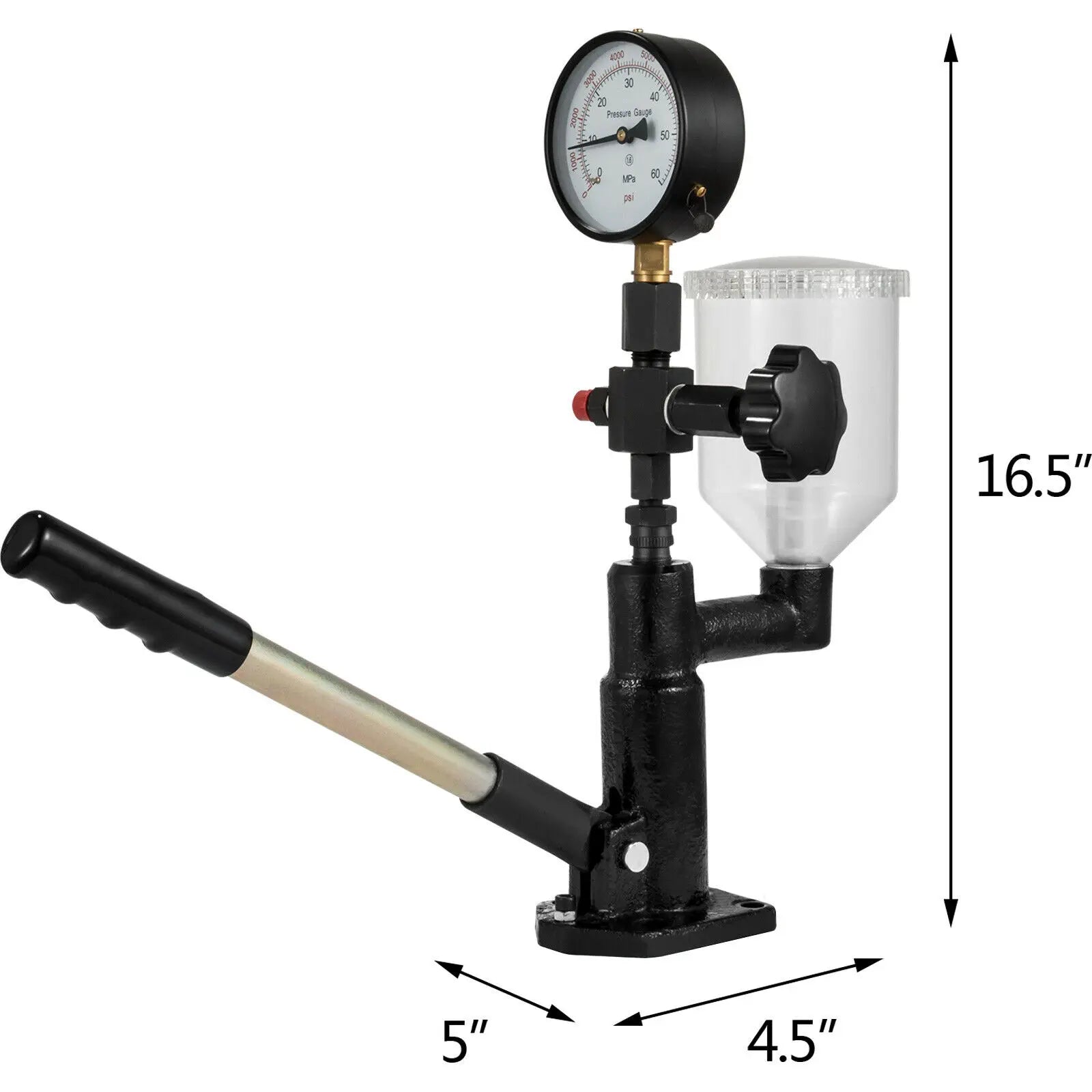

  • Product Size: 5x4.5x16.5 in / 12.7x11.4x41.9 cm

  • G.W.: 14lbs/6 kg

Package Content

  • 1 X Diesel Injector Nozzle Tester

  • 2 X Extra Oil Pipes


Features & Details

  • Durable Aluminum Construction: Crafted from high-quality aluminum through a precise casting process, ensuring enhanced durability and rigidity. Features a plastic fuel cup for fuel containment and a stainless pressure gauge for accurate air pressure detection.

  • Extensive Measurement Range: Equipped with a precision dual-scale gauge, capable of measuring values from 0-600 bar/0-8000 psi, with a maximum test pressure of 60M Pa (100 mm Dial, 3/8" BSP thread). Includes a transparent 0.8L fuel measuring cup with a filter for conducting various injector nozzle tests.

  • Versatile Testing Capabilities: Capable of performing essential tests such as injection nozzle opening pressure, leakage, chattering, spray pattern inspection, and atomization. Ideal for comprehensive examination of automotive diesel injectors due to its multifunctional testing capabilities.

  • Complete Set of Accessories: Comes with essential components including a 60MPa pressure gauge, handle, high-pressure pipes, A and B type connectors with metric size nuts (12 X 1.5) and (14 X 1.5), 0.8L fuel cup with a 5-micron Bosch filter, piston/element, delivery valve, and extra oil pipes for testing versatility.

  • Wide Range of Applications: Suitable for calibrating fuel injectors in diesel engines of automobiles and tractors. Compatible with various types of diesel injectors, excluding Common Rail Diesel Injectors (CRDI), making it a versatile tool across different diesel engine applications.
