150HP Hydraulic Outboard Steering System Kit

Durable & Efficient Marine Steering Solution

Upgrade your boat’s steering with this advanced hydraulic outboard steering kit, designed for engines up to 150HP. Featuring a compact cylinder and a low-friction helm, the system ensures smooth and precise steering. The aluminum alloy rudder shaft is built to endure tough marine conditions, while the included hydraulic cylinder with a two-way locking valve delivers reliable performance and durability.

• Two-Way Locking Valve Includes 2x20FT Hydraulic Hoses High-Performance Steering Cylinder Engineered for Versatility

Key Features

•

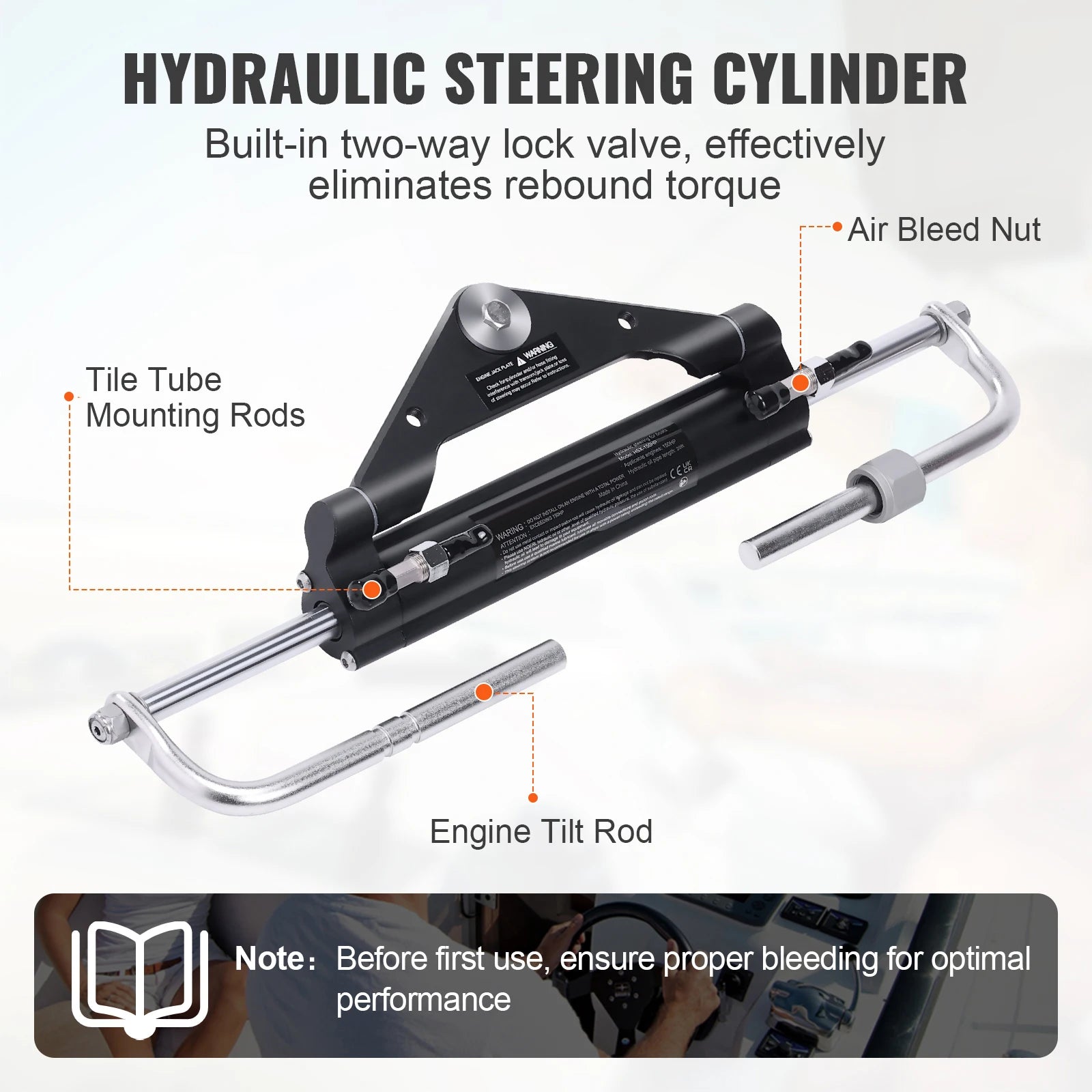

• Robust Steering Cylinder:


• With an output force of 400kgf, our high-performance hydraulic steering cylinder is ideal for most splash wells, providing optimal engine operation without space constraints. Its robust construction and effective seals ensure durability in harsh marine environments, delivering precise steering control.


• Comprehensive 150 HP Hydraulic Steering Kit:


• This hydraulic steering system for 150 HP boats includes a steering cylinder, low-friction hydraulic pump, two 20ft high-pressure hoses, and a full set of accessories. It serves as an excellent replacement for worn-out hydraulic steering systems, ensuring superior control and stability during your maritime adventures.

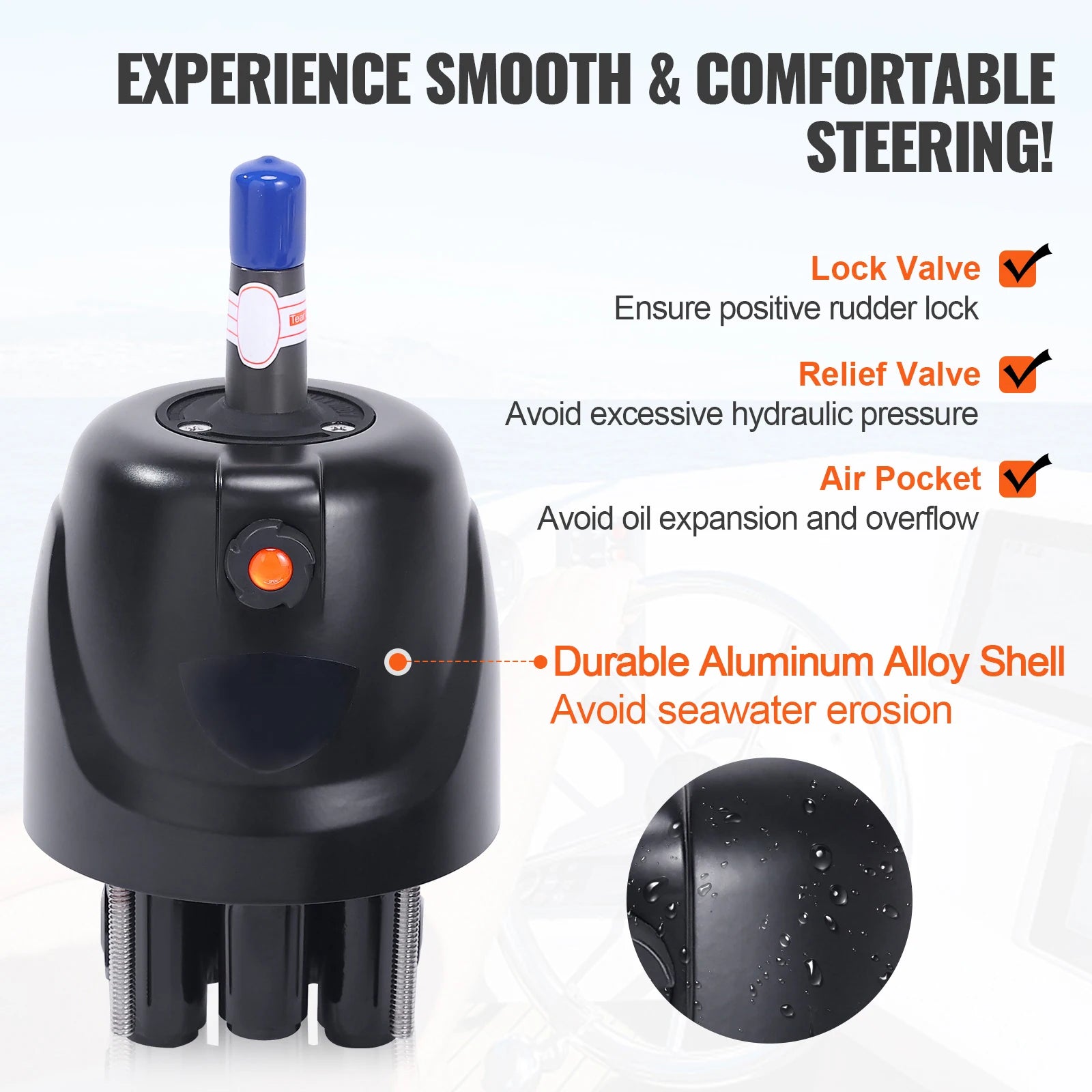

• Advanced Two-Way Locking Valve:


• The hydraulic pump includes a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This setup enhances reliability, security, and efficiency while reducing operational and maintenance costs over time.


• Versatile Engine Compatibility:

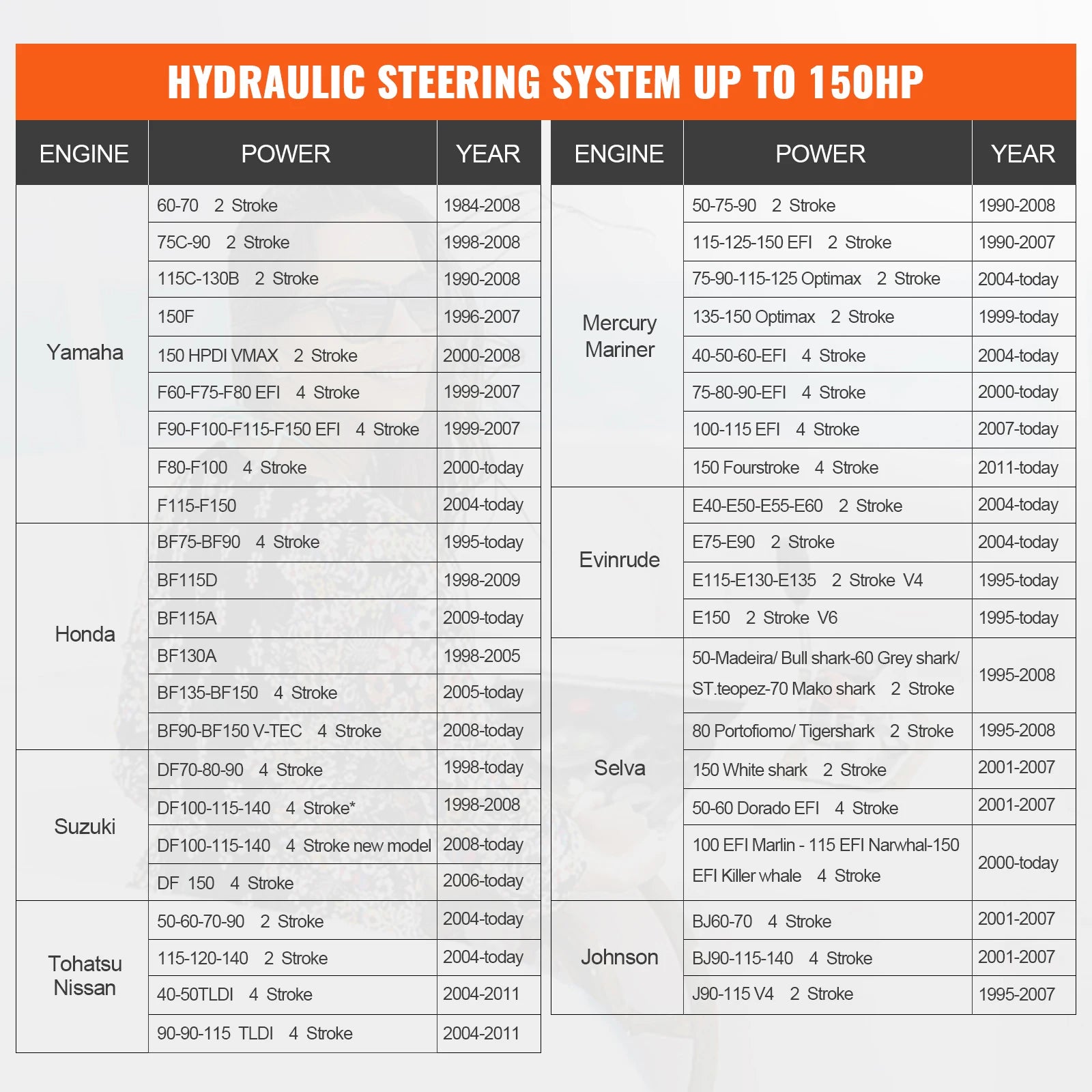

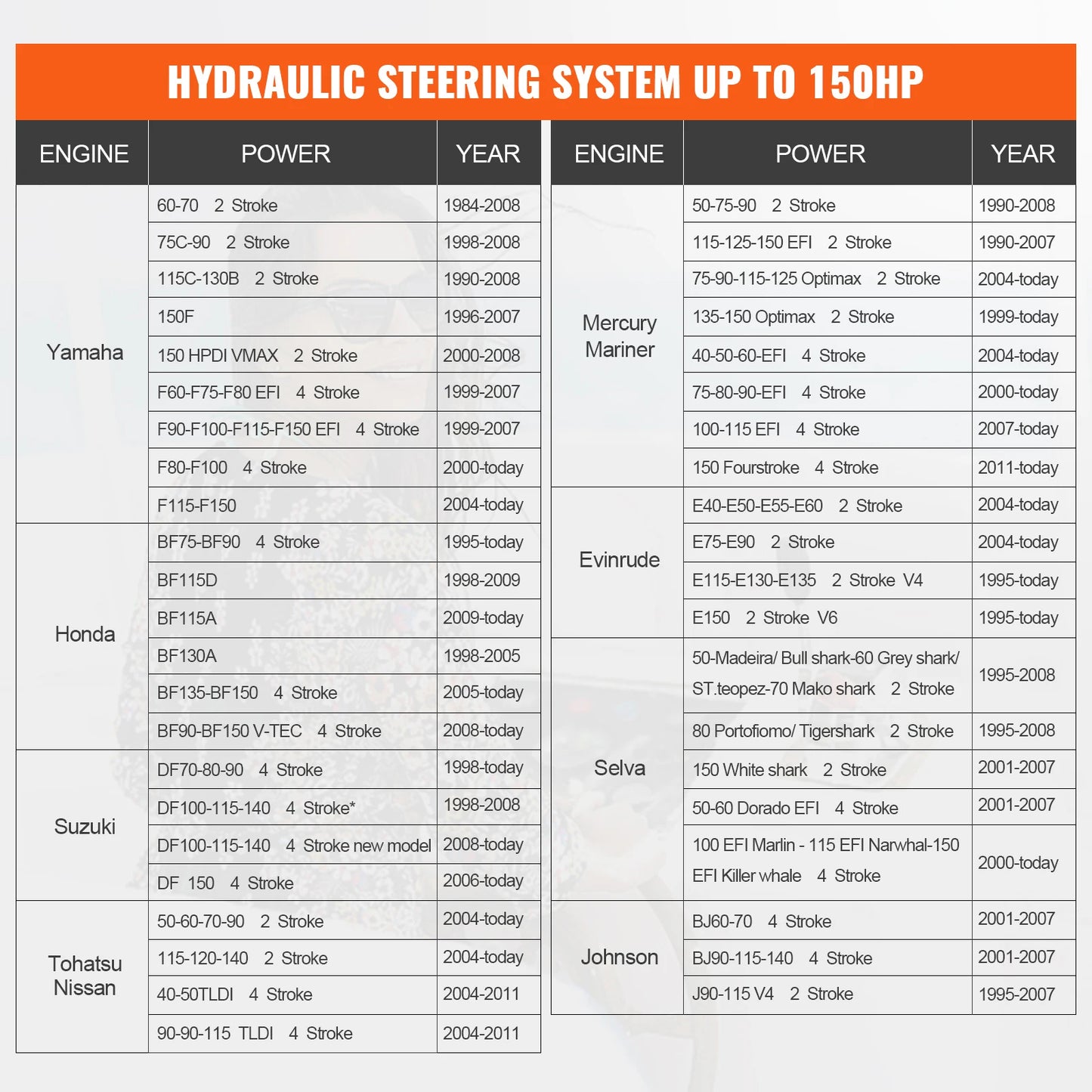

• Our marine hydraulic steering system supports outboard motors up to 150HP and integrates effortlessly with popular brands like Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. It ensures smooth and precise steering control for an exceptional boating experience.

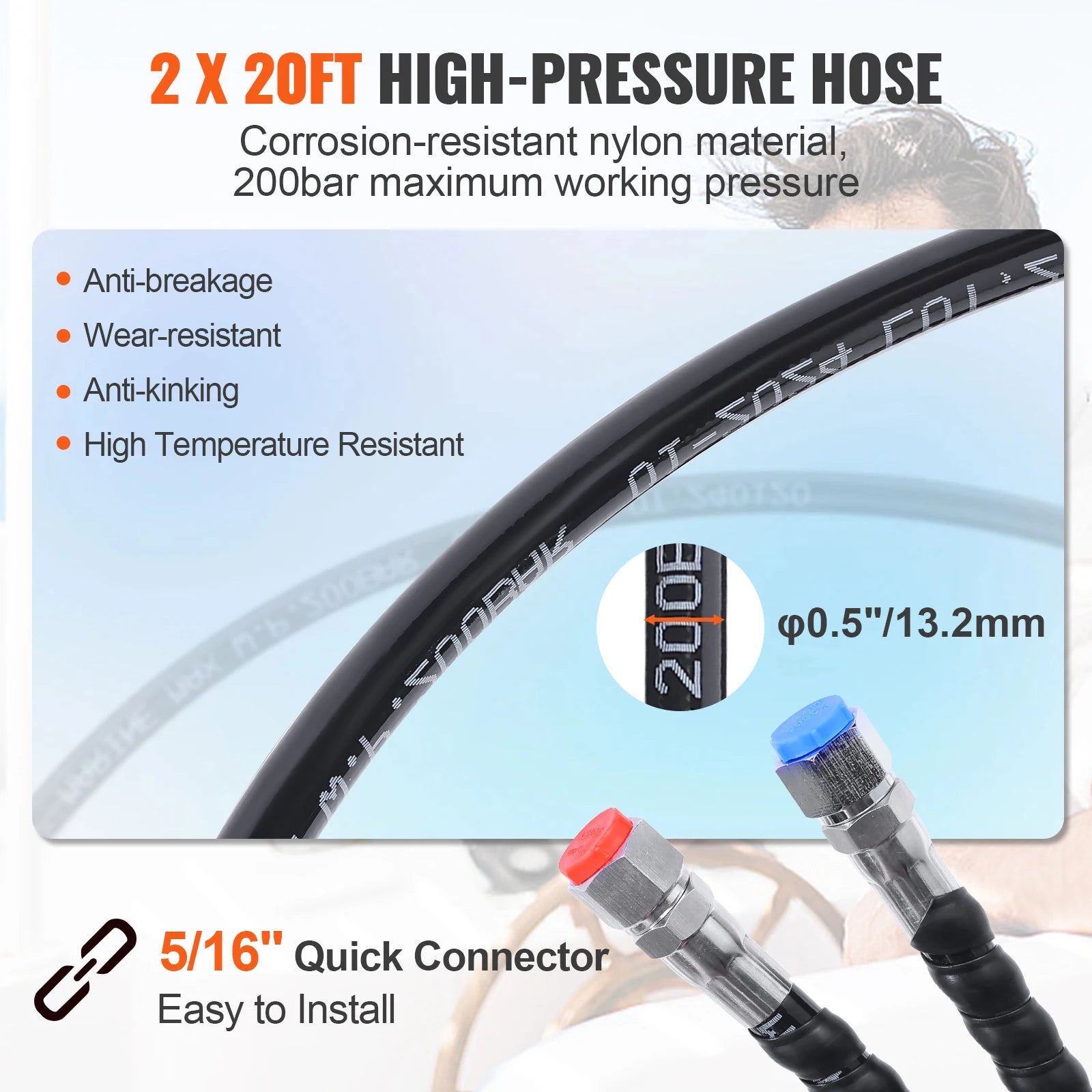

• Reinforced Hydraulic Hoses:


• Featuring a maximum working pressure of 200 bar and reinforced with durable nylon tubing, our hydraulic hoses are designed to handle heavy loads without rupture or leakage. The quick-fit 5/16"" fittings allow for easy installation across various vessel types, providing reliable response to steering inputs.

Customizable Hoses

The kit includes 20-foot hoses that can be tailored to fit your specific needs by cutting them to the required length. Additionally, the quick-fit 5/16"" fittings make installation quick, easy, and suitable for repeated use

Important Usage Reminder

Before operating the outboard hydraulic steering kit, it is essential to fill it with oil and remove any air. If you notice decreased performance or delayed response, check the hydraulic fluid level and perform an air purge. We highly recommend consulting the user manual for detailed instructions.

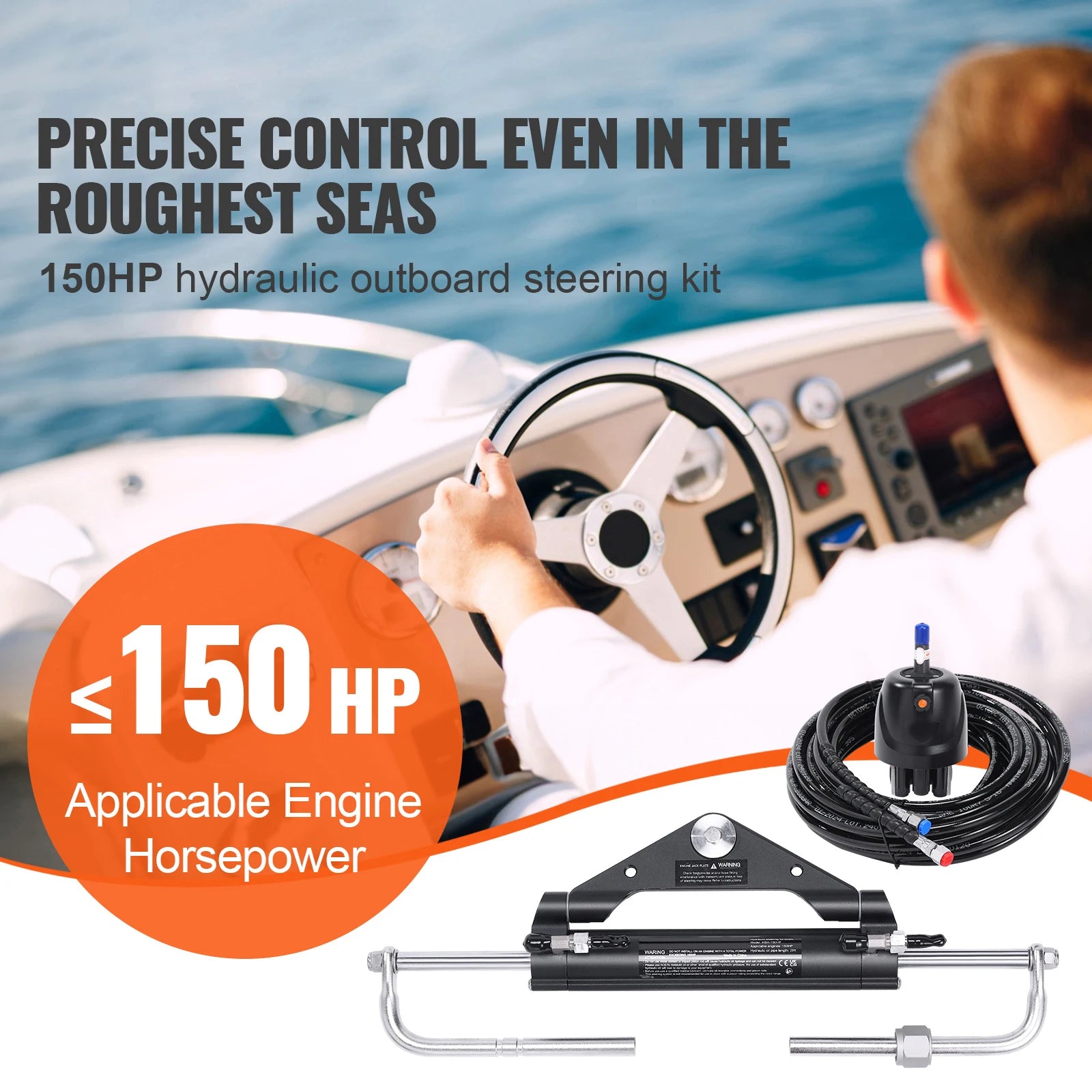

150HP Hydraulic Outboard Steering System Kit

Our kit allows for the installation of a hydraulic steering system on engines up to 150HP. The rudder shaft has a durable aluminum alloy casing designed to endure harsh marine conditions. The hydraulic steering cylinder is equipped with a two-way locking valve, ensuring high-quality maritime performance..

Robust and Reliable

The hydraulic steering pump body is made from high-quality aluminum alloy, ensuring stable performance in wet, rainy, or dusty environments. This significantly reduces environmental damage, ensuring reliable operation under any conditions.

Simplified Maintenance

This boat hydraulic steering system features an easily detachable oil seal design, making future inspections and maintenance straightforward. This ensures that the system remains efficient and smooth by preventing performance issues due to aging or damaged oil seals.

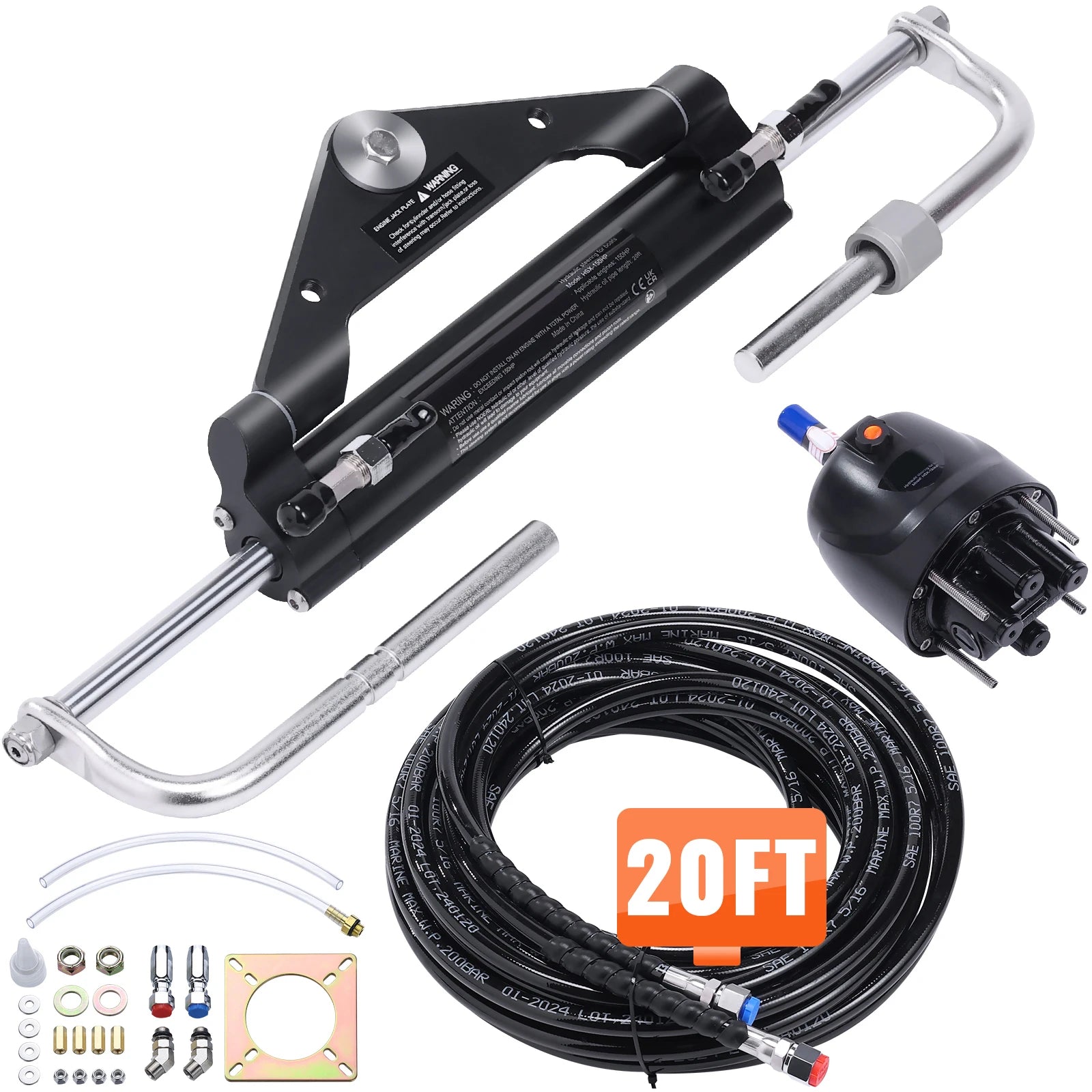

Comprehensive Accessories

Our marine hydraulic steering kit is equipped with everything necessary for a seamless setup and ongoing maintenance. The package includes a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a full set of accessories for all your installation needs.

Specification

• Tube I.D: Φ30 mm / 1.2 in Rod I.D: Φ16 mm / 0.6 in Stroke: 195 mm / 7.7 in Capacity: 117 CC Output Force: 400 KGF Maximum Pressure: 2.5Mpa / 363psi Applicable Engine Horsepower: ≤150HP Item Model Number: HSX-150HP/li>

Package Content

• 1 x User Manual 1 x Hydraulic Steering Pump 2 x High-Pressure Oil Hoses 1 x Hydraulic Steering Cylinder
